Suzuki Trim & Tilt System Part

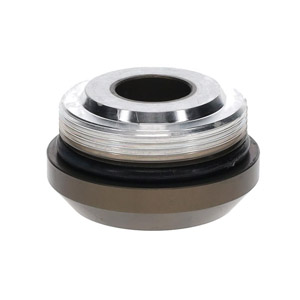

Suzuki DF200-DF350 Trim Rod Cap / Rod Guide 48630-98L02
This OEM Suzuki trim rod cap, also listed as a trim cylinder rod guide, is used in select Suzuki outboard power trim and tilt cylinder applications. It is commonly referenced for DF200 through DF350 four-stroke trim cylinder service where OEM part number 48630-98L02 is called for.
Suzuki part number 48630-98L02 replaces earlier OEM numbers 48630-98J00, 48630-98J01, 48630-98L00, and 48630-98L01. Always verify your engine model, serial number, and trim cylinder parts diagram before ordering.
Compatible Applications
| Suzuki Engine Family | Application | Fitment Note |
|---|---|---|
| DF200 4-stroke | Trim cylinder cap / rod guide | Commonly listed for 2008-2014 applications. Verify serial number. |
| DF225 / DF250 4-stroke | Trim cylinder cap / rod guide | Commonly listed for 2008-Present applications. Confirm by OEM diagram. |
| DF300 4-stroke | Trim cylinder cap / rod guide | Commonly listed for 2007-Present applications. Confirm exact model and serial. |
| DF325 / DF350 4-stroke | Selected trim cylinder applications | Use only where your parts diagram calls for 48630-98L02 or a superseded number below. |
Important Fitment Note
This part is for Suzuki trim cylinder service where OEM 48630-98L02 or one of its superseded part numbers is specified. Trim and tilt components can vary by model, serial range, and cylinder location, so confirm that you are servicing the correct trim cylinder before ordering.
OEM & Cross Reference Numbers
| Current Suzuki OEM Number | 48630-98L02 |
|---|---|
| Replaces / Cross References | 48630-98J00, 48630-98J01, 48630-98L00, 48630-98L01 |
| Part Description | Trim rod cap / trim cylinder rod guide |
| Manufacturer | Suzuki |
| Pro Marine Item Number | 48630-98L02 |
What This Part is Used For
The trim rod cap / rod guide is part of the hydraulic trim cylinder assembly. It helps guide the trim rod and supports the sealing area of the cylinder. If the trim rod is pitted, leaking, binding, or showing signs of seal wear, inspect the rod, cap, seals, and related trim cylinder components before reassembly.
Key Features and Benefits
- OEM Suzuki trim and tilt component for proper fit and service compatibility.
- Used as a trim rod cap or rod guide in select Suzuki trim cylinder assemblies.
- Current OEM number replaces multiple earlier Suzuki part numbers.
- Useful when repairing trim cylinder leaks, worn rod guide areas, or damaged trim caps.
- Best matched by OEM number, engine serial number, and Suzuki parts diagram.
Product Details
| Item Number | 48630-98L02 |
|---|---|
| Manufacturer Item | 48630-98L02 |
| Manufacturer | Suzuki |
| Product Type | Trim rod cap / rod guide |
| System | Power trim and tilt / trim cylinder |
FAQ
Is 48630-98L02 the same as 48630-98J00 or 48630-98L01?
48630-98L02 is the current Suzuki OEM number shown as a replacement or cross reference for 48630-98J00, 48630-98J01, 48630-98L00, and 48630-98L01.
What engines does this trim rod cap fit?
It is commonly listed for select Suzuki DF200 through DF350 trim cylinder applications. Because trim assemblies can vary, confirm your serial number and OEM diagram before ordering.
Should I inspect anything else while replacing this cap?
Yes. Inspect the trim rod for pitting, scoring, or corrosion, and check the seal area before reassembly. A damaged rod can quickly damage new trim cylinder seals or caps.
