What This T-Flange is Used For

The TFLANGE-FP mounts at the transom to create a finished connection point for a 2" outboard rigging tube.

The additional fuel-line port allows the fuel hose to enter the boat separately instead of sharing the main rigging tube with all of the other engine components.

Depending on the outboard installation, the main rigging tube may contain:

• Engine wiring harnesses
• Battery cables
• Throttle and shift control cables
• Hydraulic steering hoses
• Gauge and network wiring
• Trim wiring
• Accessory wiring

Why Use a Separate Fuel Hose Port?

A separate fuel-line opening gives the installer another routing option rather than forcing every hose and cable through the same 2" rigging tube.

This can be especially useful when:

• The main rigging bundle is already crowded
• The fuel hose needs a different routing path
• You want easier access to the fuel line for future service
• You want to keep the fuel hose separated from wiring and control cables
• The existing boat layout already routes the fuel hose separately

2" Black and White Rigging Tube

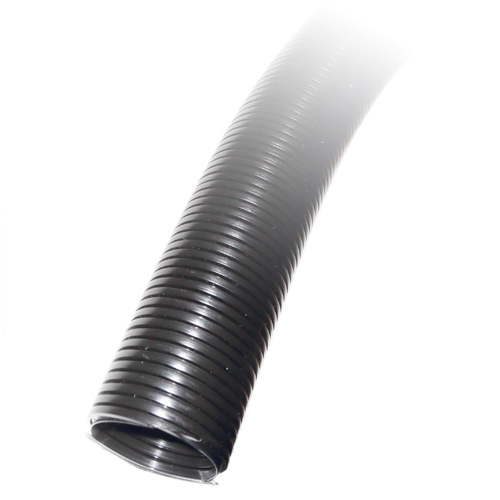

2" Black Rigging Tube - RIGTUBE-B

Black 2" outboard rigging tube sold by the foot for protecting and organizing the engine rigging bundle.

View Black 2" Rigging Tube

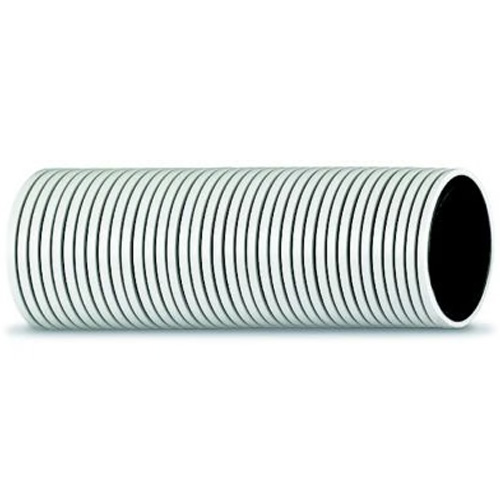

2" White Rigging Tube - RIGTUBE-W

White 2" outboard rigging tube for installations where a lighter color better matches the hull, transom or engine.

View White 2" Rigging Tube

Standard 2" Transom Flange

2" Standard Transom Flange - TFLANGE-2

If you do not need a separate fuel-line port, Pro Marine also stocks a standard 2" transom flange for compatible rigging-tube installations.

View Standard 2" Transom Flange

2" Rigging Hose Union

2" Rigging Hose Union - TUNION

Universal 2" rigging hose union for joining compatible sections of 2" rigging tube.

Useful when extending an existing rigging run or joining two sections during a rerigging project.

View 2" Rigging Hose Union

Other Rigging Protection Options

When the engine is already rigged and feeding all of the cables through traditional closed tubing would be difficult, Pro Marine also stocks split-conduit and wrappable braided options.

Split Conduit Tubing

1.5" Split Conduit - SPLITTUBING-15

Wraparound split conduit for protecting smaller existing rigging bundles.

View 1.5" Split Conduit

2" Split Conduit - SPLITTUBING-2

Larger split conduit for existing outboard rigging bundles that benefit from a wraparound installation.

View 2" Split Conduit

Wrappable Split Braided Tube

1.5" Wrappable Braided Tube - F6N150

Flexible wraparound braided protection for smaller installed cable and hose bundles.

View 1.5" Braided Tube

2" Wrappable Braided Tube - F6N200

Larger 2" wraparound braided option for protecting an existing outboard rigging bundle without fully disconnecting the engine.

View 2" Braided Tube

Choosing a Rigging Flange

Installation Tips

• Verify the rigging tube is 2" before ordering the flange.
• Plan the fuel-hose path before cutting or drilling the transom area.
• Leave adequate room for full engine steering movement.
• Make sure trim and tilt movement does not pull on the fuel hose or rigging bundle.
• Avoid sharp bends in fuel hose, steering hose and control cables.
• Support the rigging bundle so its weight does not pull excessively on the flange.
• Inspect the transom entry point for chafe or sharp edges.
• Seal and install the flange according to the boat and component manufacturer's requirements.

Key Features and Benefits

• 2" outboard rigging flange
• Separate fuel-line port
• Universal marine application
• TH Marine brand
• Manufacturer item RFFHP-1-DP
• Provides a finished transom rigging entry point
• Allows fuel hose to be routed outside the main rigging bundle
• Compatible with Pro Marine 2" black and white rigging tube options
• Standard flange without fuel port also available
• 2" rigging hose union available

FAQ

What size rigging tube does TFLANGE-FP use?
TFLANGE-FP is intended for a 2" rigging tube.

Who makes TFLANGE-FP?
It is manufactured by TH Marine. The manufacturer item number is RFFHP-1-DP.

What is the extra port used for?
The additional port allows the engine fuel hose to be routed separately from the main 2" rigging bundle.

Do I have to route the fuel hose separately?
The flange provides that option. Follow the layout and routing requirements of the specific boat and outboard installation.

Do you stock 2" rigging tube?
Yes. Pro Marine stocks black 2" rigging tube and white 2" rigging tube .

Do you stock a flange without the fuel port?
Yes. The TFLANGE-2 2" Transom Flange is the standard option.

Can I join two pieces of 2" rigging tube?
Yes. Pro Marine stocks the TUNION 2" Rigging Hose Union for compatible installations.

What if the engine is already rigged?
Pro Marine also stocks split conduit and wrappable braided tubing that can be installed around an existing cable and hose bundle.
