Evinrude E-TEC G2 200-300HP Thermostat Kit 13345
| Quantity | Price |
| 1 | 35.99 |

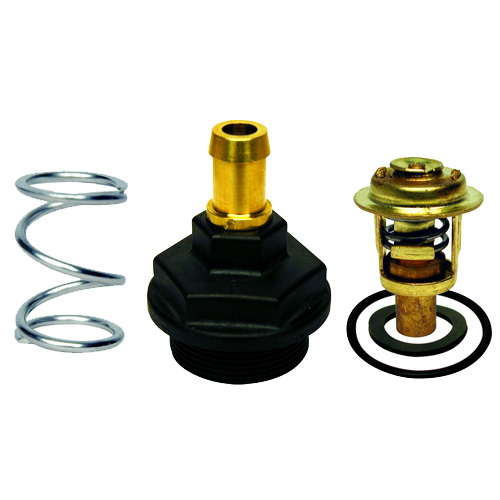

Evinrude E-TEC G2 Thermostat Service Kit
Evinrude E-TEC G2 200-300HP Thermostat Kit - 13345
The 13345 Thermostat Kit is designed for select Evinrude E-TEC G2 200HP through 300HP outboards.
Verified engine families include AB250 / AB300, AF200-300, AG200-300 and AH200-300 E-TEC G2 models.
This kit brings together the thermostat service components commonly needed when servicing the thermostat assembly, with related thermostat cover and spring references listed below.
AB: 250HP / 300HP
AF: 200-300HP
AG: 200-300HP
AH: 200-300HP
Fitment
| Evinrude E-TEC G2 Model Family | Horsepower |
|---|---|
| AB | 250HP / 300HP |
| AF | 200HP through 300HP |
| AG | 200HP through 300HP |
| AH | 200HP through 300HP |
Verify your complete Evinrude model designation before ordering. E-TEC G2 engines were produced in multiple model families and horsepower configurations, and thermostat components should be confirmed against the exact engine application.
Thermostat Kit Components
The thermostat assembly uses the following components. Stocked items are linked below for quick replacement, while the thermostat cover and spring are noted as special-order components.
Thermostat Cap O-Ring - 1188
Sealing O-ring used at the thermostat cap / cover assembly.
Thermostat cover used with the E-TEC G2 thermostat assembly.
Status: Special Order
Spring used in the thermostat assembly to maintain the proper thermostat position and operation.
Status: Special Order
Thermostat Gasket - 10-1155
Replacement gasket used to seal the thermostat assembly during installation.
143°F Brass Thermostat - 403
Replacement thermostat used in compatible Evinrude E-TEC G2 cooling-system applications.
Temperature: 143°F
What is Included
The 13345 Thermostat Kit is intended to simplify thermostat service on compatible Evinrude E-TEC G2 engines.
The thermostat system uses the components shown above, including the thermostat, thermostat gasket, thermostat cap O-ring, thermostat cover and spring. Verify the exact contents of the 13345 package shown on the product listing before ordering any individual components separately.
Why Replace the Thermostat?
The thermostat regulates coolant flow through the engine so the powerhead reaches and maintains the correct operating temperature.
A thermostat that sticks open can cause the engine to operate too cool, while a thermostat that sticks closed or does not open correctly can contribute to elevated engine temperature or overheating.
Common Reasons for Thermostat Service
- Routine cooling-system maintenance
- Engine running hotter than normal
- Engine running cooler than expected
- Thermostat sticking or corroded
- Salt or mineral buildup around the thermostat housing
- Cooling-system inspection during major engine service
- Damaged thermostat gasket or O-ring
- Thermostat housing opened for inspection or repair
Inspect the Complete Thermostat Assembly
When the thermostat housing is opened, inspect more than just the thermostat. The gasket, cap O-ring, spring and thermostat cover should also be checked for wear, corrosion, damage or deterioration.
Replacing damaged sealing components during thermostat service can help prevent coolant leaks and avoid reopening the housing for a minor seal failure later.
Thermostat Service Components
| Component | Part Number | Availability |
|---|---|---|
| Thermostat Cap O-Ring | 1188 | Linked Above |
| Thermostat Cover | 5008903 | Special Order |
| Thermostat Spring | 0351145 | Special Order |
| Thermostat Gasket | 10-1155 | Linked Above |
| 143°F Brass Thermostat | 403 | Linked Above |
Key Features and Benefits
- Thermostat service kit for Evinrude E-TEC G2 outboards
- Fits select G2 200HP through 300HP applications
- Fits AB250 and AB300 model families
- Fits AF200-300 model families
- Fits AG200-300 model families
- Fits AH200-300 model families
- 143°F replacement thermostat available separately
- Thermostat gasket available separately
- Thermostat cap O-ring available separately
- Thermostat cover 5008903 available by special order
- Thermostat spring 0351145 available by special order
- Convenient option when servicing the complete thermostat assembly
FAQ
What engines does thermostat kit 13345 fit?
It fits select Evinrude E-TEC G2 200-300HP engines,
including AB250 / AB300 and AF, AG and AH 200-300HP model families.
Does this fit Evinrude E-TEC G2 300HP?
Yes. The supplied fitment includes multiple 300HP G2 applications within
the AB, AF, AG and AH model families.
What thermostat is used with this kit?
The linked 403 brass thermostat is rated at
143°F.
Can I buy the thermostat separately?
Yes. The 403 thermostat is linked above.
Can I buy the thermostat gasket separately?
Yes. The 10-1155 thermostat gasket is linked above.
Can I buy the thermostat O-ring separately?
Yes. The 1188 thermostat cap O-ring is linked above.
Is the thermostat cover available?
Yes. Thermostat cover 5008903 is listed as
special order.
Is the thermostat spring available?
Yes. Spring 0351145 is available by special order.
Should I replace the gasket and O-ring when servicing the thermostat?
Inspect both sealing components whenever the housing is opened and replace
them if they are damaged, hardened, flattened or otherwise unsuitable for
reuse.
