Yamaha 3.3L F200-F250 Connecting Rod Bearing Set 33SSROD

OEM & Cross Reference Numbers

Yamaha 3.3L Fitment

This bearing set is designed for all Yamaha 3.3L four-stroke outboard applications that use the 6P2, 6S1 or 69J connecting-rod bearing families listed above.

Matching Crankshaft Main Bearing Set

Pro Marine 33SSMAIN Yamaha 3.3L Main Bearing Set

Matching one-size crankshaft main bearing set for Yamaha 3.3L four-stroke engines.

Like the rod bearings, the 33SSMAIN set eliminates the need to select Yamaha bearing color codes or use Plastigauge.

First OEM Reference: 6P2-11416-00-00

View Yamaha 3.3L Main Bearing Set

Required Yamaha FC-W 20W40 Oil

Yamaha FC-W 20W40 oil is required when using these Pro Marine one-size bearings. Pro Marine stocks both gallon and quart sizes.

Yamaha FC-W 20W40 Engine Oil - Gallon

Required 20W40 engine oil for Pro Marine Yamaha one-size bearing installations.

View 20W40 Gallon

Yamaha FC-W 20W40 Engine Oil - Quart

Quart-size Yamaha FC-W 20W40 oil for topping off or completing the required oil quantity.

View 20W40 Quart

Yamaha 3.3L Engine Rebuild Parts

Yamaha 3.3L engines use different piston designs depending on the piston bridge configuration. Identify the piston family before ordering rebuild parts.

Standard Size Pistons & Rings

Vertex Standard Piston Kit - 24225

First OEM: 69J-11631-00-A0

View Standard Piston

94.00mm Standard Ring Set - 7500

First Yamaha OEM: 6AW-11603-00-00

View Standard Rings

.010 Oversize

Vertex .010 Oversize Piston - 24225025

First OEM: 69J-11635-00-00

View .010 Piston

Yamaha OEM .010 Ring Kit - 11604

First OEM: 63P-11604-00-00

View .010 Rings

.020 Oversize & Sleeve

Vertex .020 Oversize Piston - 24225050

OEM Family: 69J-11636

View .020 Piston

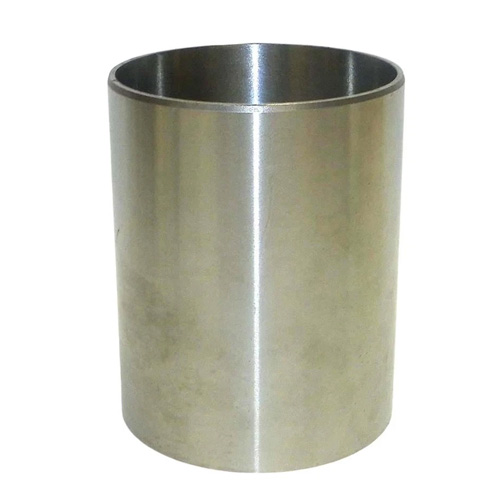

Pro Marine 3.3L Cylinder Sleeve - 3300SA

Replacement sleeve for Yamaha 3.3L V6 rebuilds.

View Cylinder Sleeve

Rod Bolts

Yamaha Rod Bolt - Up to 2010

First OEM: 69J-11654-00-00

View Rod Bolt

Yamaha Rod Bolt - 2010 & Up

First OEM: 63P-11654-10-00

View Later Rod Bolt

Valves & Valve Train

69J Intake Valve - Up to 2010

First OEM: 69J-12111-00-00

69J Exhaust Valve - Up to 2010

First OEM: 69J-12121-00-00

6P2 Intake Valve - Early Style

First OEM: 6P2-12111-00-00

6P2 Exhaust Valve - Early Style

First OEM: 6P2-12121-00-00

6P2 Intake Valve - 2010 & Up

First OEM: 6P2-12111-10-00

6P2 Exhaust Valve - 2010 & Up

First OEM: 6DX-12121-00-00

Valve Stem Seal

First OEM: 69J-12119-00-00

Yamaha Valve Spring

First OEM: 69J-12113-00-00

Head Gaskets & Powerhead Gasket Kit

Pro Marine Starboard Head Gasket

First OEM: 69J-11181-01-00

Yamaha OEM Starboard Head Gasket

First OEM: 69J-11181-01-00

Pro Marine Port Head Gasket

First OEM: 69J-11182-01-00

Yamaha OEM Port Head Gasket

First OEM: 69J-11182-01-00

Pro Marine Powerhead Gasket Kit - 69013P

First OEM: 6P2-W0001-00-00

Pistons & Rings

Pro Marine Standard Piston - 24224P

First OEM: 6P2-11631-00-B0

94.00mm Standard Ring Set - 7500

First Yamaha OEM: 6AW-11603-00-00

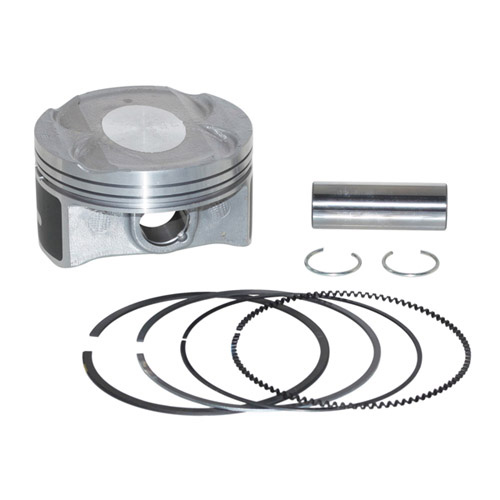

Pro Marine .010 Piston - 24224025P

First OEM: 6P2-11635-10-00

Pro Marine .020 Piston - 24224050P

OEM Family: 6P2-11636

Yamaha OEM .010 Ring Kit

First OEM: 63P-11604-00-00

Pro Marine 3.3L Cylinder Sleeve

Replacement cylinder sleeve for Yamaha 3.3L rebuilds.

Additional Later 3.3L Valve Options

6CB Intake Valve

First OEM: 6CB-12111-00-00

6DA Exhaust Valve

First OEM: 6DA-12121-00-00

Why Choose Pro Marine 3.3L Bearings?

• Complete connecting rod bearing set
• Fits Yamaha 3.3L four-stroke engine family
• One bearing size replaces multiple Yamaha color-coded bearings
• No Plastigauge required for bearing-size selection
• No bearing color-code matching
• Compatible main bearing set available
• Large selection of pistons, rings, valves, sleeves, bolts and gasket parts available
• Yamaha FC-W 20W40 oil required

FAQ

What engines does 33SSROD fit?
It fits the Yamaha 3.3L four-stroke engine family using the 6P2, 6S1 and 69J rod-bearing part-number families listed above.

Do I need to match Yamaha bearing colors?
No. These Pro Marine bearings are designed as a one-size-fits-all replacement for compatible Yamaha 3.3L engines.

Do I need Plastigauge to select the bearing size?
No. The Pro Marine one-size bearing system eliminates Plastigauge as a method of selecting different Yamaha bearing thicknesses.

What oil must I use?
Yamaha FC-W 20W40 engine oil is required. Gallon and quart options are linked above.

Is a matching crankshaft main bearing set available?
Yes. The matching 33SSMAIN Yamaha 3.3L main bearing set is linked above.

How do I identify the correct piston?
Determine whether the engine uses the earlier 69J 5/8" bridge piston or the 6P2 1-13/16" bridge piston before ordering.

Do you carry the rest of the parts for a Yamaha 3.3L rebuild?
Yes. Pro Marine stocks pistons, rings, cylinder sleeves, rod bolts, intake and exhaust valves, valve seals, valve springs, head gaskets and powerhead gasket kits. The major rebuild components are linked above.
