Yamaha F200-F250 Timing Belt 6P2-46241 | Sierra 18-15132
Yamaha F/LF250 (2005-Late)
F/LF200(2006-Late)
| Quantity | Price |
| 1 | 362.89 |
Sierra Yamaha 4-Stroke Timing Belt
Yamaha F200, F225 & F250 Timing Belt - Sierra 18-15132 / 6P2-46241
The Sierra 18-15132 Timing Belt is an aftermarket replacement timing belt for select Yamaha F200, F225 and F250 four-stroke outboards. It replaces Yamaha OEM timing belt numbers 6P2-46241-00-00, 6P2-46241-01-00 and 6P2-46241-02-00.
Verified fitment includes standard and counter-rotation Yamaha 200HP, 225HP and 250HP applications, including multiple XA, UA, TUR, TXR, BTUR and BTXR configurations.
OEM & Cross Reference Numbers
| Brand / Type | Part Number |
|---|---|
| Sierra | 18-15132 |
| Yamaha OEM | 6P2-46241-00-00 |
| Yamaha OEM | 6P2-46241-01-00 |
| Yamaha OEM | 6P2-46241-02-00 |
Yamaha Fitment
| Engine Family | Verified Applications |
|---|---|
| Yamaha F200 | F200XA, F200XA_0119, F200XA_011, F200XA_051 and related 2006 and later applications. |
| Yamaha LF200 | LF200XA, LF200XA_0119, LF200XA_01, LF200XA_0112_, LF200XA_05 and LF200XA_0511 applications. |
| Yamaha F225 | F225XA, F225XA-201, F225XA_011, F225XA_051 and F225TLR applications. |
| Yamaha F250 | F250XA, F250XA_011, F250UA, F250UA_011, F250TUR, F250TXR, F250BTUR and F250BTXR applications. |
| Yamaha LF250 Counter-Rotation | LF250XA, LF250XA_01, LF250UA, LF250UA_01, LF250TUR, LF250TXR, LF250BTUR and LF250BTXR applications. |
The supplied fitment includes select 2005 F250 / LF250 applications along with a broad range of 2006 and later F200, F225 and F250 four-stroke outboards.
Yamaha used different timing belts across similar horsepower families. Verify the complete engine model number and confirm that the original belt cross references 6P2-46241-00-00, 6P2-46241-01-00 or 6P2-46241-02-00 before ordering.
Timing Belt Tensioner
When servicing the timing belt, inspect the belt tensioner assembly at the same time. A worn, noisy or weak tensioner can reduce belt control and should be replaced if it is not operating correctly.

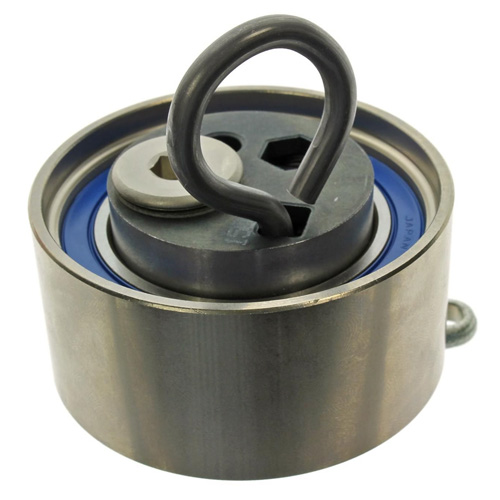

Yamaha Timing Belt Tensioner Assembly - 6P2-11590-05-00
The matching timing belt tensioner assembly for compatible Yamaha F200, F225 and F250 four-stroke applications.
If the tensioner shows wear, noise, binding or poor belt tension, it is a good idea to replace it while the timing belt is already being serviced.
What This Timing Belt Does
The timing belt synchronizes the crankshaft and camshafts so the engine's valves open and close at the correct time in relation to piston movement. Proper timing is critical for smooth operation and correct four-stroke combustion.
A worn, cracked, contaminated or damaged belt can lead to incorrect valve timing and potentially serious engine problems. The belt should be inspected during scheduled maintenance and replaced according to the engine's service requirements.
Common Signs the Timing Belt Needs Attention
- Visible cracking or deterioration
- Frayed belt edges
- Missing or damaged belt teeth
- Oil or other fluid contamination on the belt
- Abnormal noise from the timing belt area
- Loose belt tension
- Worn or noisy tensioner assembly
- Belt has reached its scheduled replacement interval
Why Inspect the Tensioner During Belt Replacement?
The timing belt and tensioner work together. Even a new belt can have shortened service life if the tensioner is worn, binding or unable to maintain proper tension.
Whenever the timing belt is replaced, inspect the 6P2-11590-05-00 tensioner assembly and related timing components before reassembly.
Key Features and Benefits
- Sierra aftermarket Yamaha timing belt
- Sierra part number 18-15132
- Replaces Yamaha 6P2-46241-00-00
- Replaces Yamaha 6P2-46241-01-00
- Replaces Yamaha 6P2-46241-02-00
- Fits select Yamaha F200 four-stroke outboards
- Fits select Yamaha F225 four-stroke outboards
- Fits select Yamaha F250 four-stroke outboards
- Fits select LF200 and LF250 counter-rotation models
- Coverage includes multiple XA, UA, TUR, TXR, BTUR and BTXR applications
- Matching timing belt tensioner linked above
FAQ
What Yamaha part numbers does Sierra 18-15132 replace?
It replaces Yamaha 6P2-46241-00-00, 6P2-46241-01-00 and
6P2-46241-02-00.
Does this fit Yamaha F200?
Yes. Verified applications include select F200XA and LF200XA model families
listed above.
Does it fit Yamaha F225?
Yes. Select F225XA and F225TLR applications are included.
Does this fit Yamaha F250?
Yes. The supplied fitment includes numerous F250XA, F250UA, F250TUR,
F250TXR, F250BTUR and F250BTXR applications.
Does it fit counter-rotation Yamaha engines?
Yes. Select LF200XA and LF250 XA / UA / TUR / TXR / BTUR / BTXR
counter-rotation applications are included.
Does this fit 2005 engines?
Yes. The supplied fitment specifically includes select
2005 F250TURD, F250TXRD, LF250TURD and LF250TXRD
applications.
What tensioner goes with this timing belt?
The compatible timing belt tensioner is
Yamaha 6P2-11590-05-00, linked above.
Should I replace the tensioner whenever I replace the belt?
Not automatically, but it should be inspected carefully. Replace the
tensioner if it shows excessive wear, noise, binding or inability to maintain
proper belt tension.
How should I confirm fitment?
Match your complete Yamaha engine model to the application list and confirm
that the original timing belt uses one of the listed
6P2-46241 OEM numbers.
