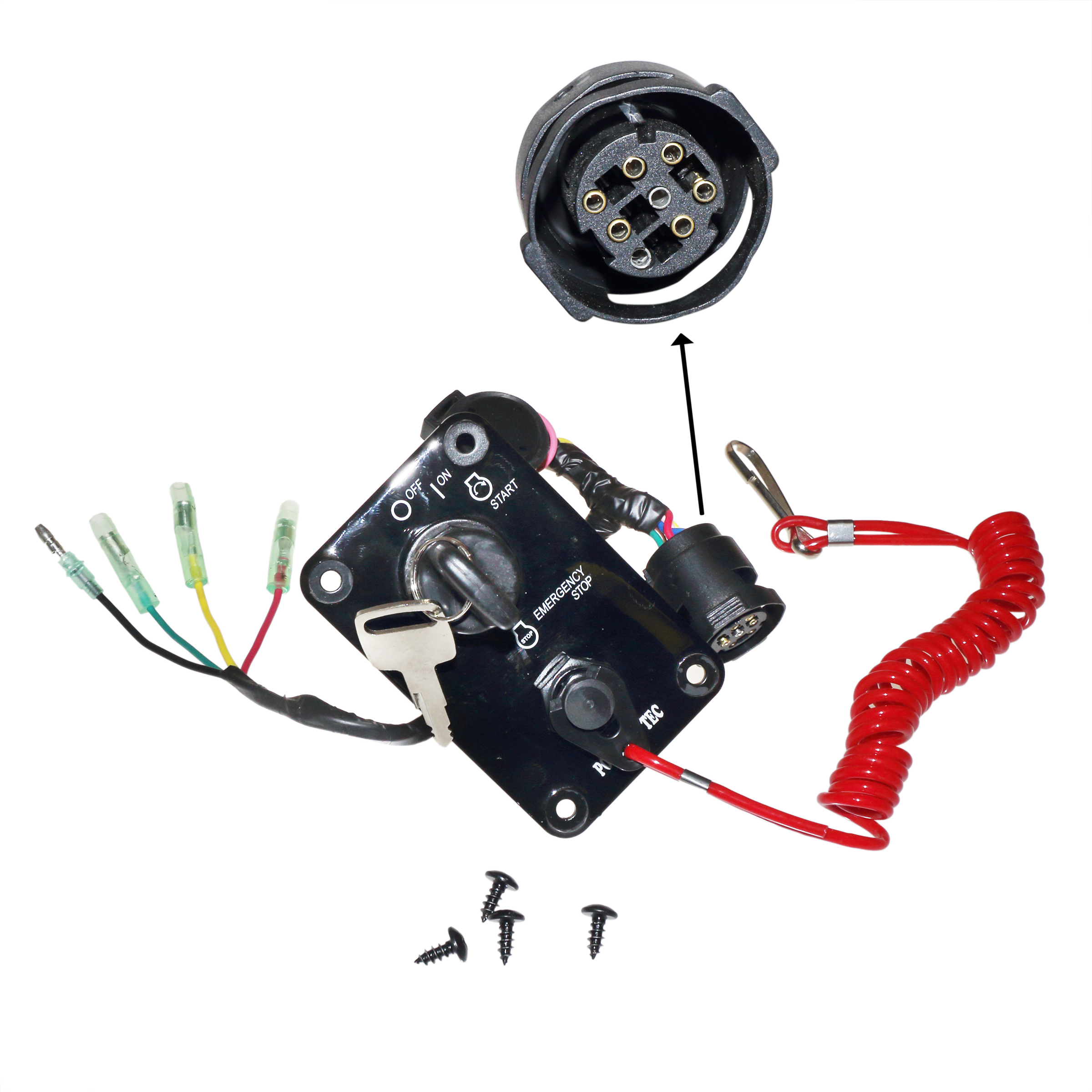

Pro Marine Single Engine Switch Panel for Yamaha 704 Rigging
Yamaha
Log in here
Pro Marine Yamaha-Style Single Engine Switch Panel
Aftermarket 704-Series Main Key Switch Panel for Yamaha Outboards
This Pro Marine single engine switch panel is an aftermarket replacement for compatible Yamaha 704-series single engine rigging systems.
Designed as a replacement option for Yamaha-style main switch panels, this assembly is used for ignition, engine stop, warning horn, and push-to-choke functions on compatible Yamaha outboard control setups.
Compatible Applications
| Brand | Rigging Type | Engine Setup | Application Notes |
|---|---|---|---|
| Yamaha | 704-Series Rigging | Single Engine | For compatible Yamaha single engine switch panel installations |
| Yamaha | Mechanical Control Systems | Single Engine | Commonly used with Yamaha mechanical shift outboard control setups |
| Yamaha | Compatible Harness Systems | Single Engine | Use where the existing switch panel and harness match the listed Yamaha OEM numbers |
| Yamaha | Push-to-Choke Applications | Single Engine | For compatible Yamaha engines and rigging using push-to-choke switch function |
Fitment depends on the main harness, control box, switch panel connector, and engine rigging configuration. Always verify your existing Yamaha part number and connector style before ordering.
OEM Part Numbers & Cross References
| Brand / Type | Part Number |
|---|---|
| Pro Marine | 82570P |
| Replaces Yamaha OEM | 704-82570-13-00 |
| Replaces Yamaha OEM | 704-82570-12-00 |
| Replaces Yamaha OEM | 704-82570-11-00 |
| Replaces Yamaha OEM | 704-82570-10-00 |
| Replaces Yamaha OEM | 704-82570-08-00 |
| Replaces Yamaha OEM | 704-82570-07-00 |
| Replaces Yamaha OEM | 704-82570-06-00 |
| Replaces Yamaha OEM | 704-82570-05-00 |
| Replaces Yamaha OEM | 704-82570-04-00 |
| Replaces Yamaha OEM | 704-82570-03-00 |
| Replaces Yamaha OEM | 704-82570-02-00 |
| Replaces Yamaha OEM | 704-82570-01-00 |
| Replaces Yamaha OEM | 6R5-82570-05-00 |
| Replaces Yamaha OEM | 6R5-82570-04-00 |
| Replaces Yamaha OEM | 6R5-82570-03-00 |
| Replaces Yamaha OEM | 6R5-82570-02-00 |
| Replaces Yamaha OEM | 6R5-82570-01-00 |
| Replaces Yamaha OEM | 6R5-82570-00-00 |
| Alternate Search Format | 704825701300 |
| Alternate Search Format | 82570P |
OEM Yamaha Option
Prefer the genuine Yamaha version? See the OEM Yamaha single engine switch panel .
What This Switch Panel is Used For
This Pro Marine switch panel is used as the main ignition and stop switch panel for compatible Yamaha single engine outboard rigging systems.
The key switch controls engine ignition and starting, while the emergency stop switch works with the safety lanyard to shut the engine off when activated.
The panel also supports push-to-choke operation on compatible Yamaha applications and includes the warning horn function used by supported Yamaha warning systems.
Replacing a damaged or worn switch panel can help restore reliable starting, shutdown, choke operation, and operator warning functionality.
Key Features and Benefits
- Pro Marine aftermarket single engine switch panel
- Replacement for compatible Yamaha 704-series switch panel assemblies
- Replaces Yamaha OEM 704-82570 and 6R5-82570 part number families
- Designed for compatible Yamaha single engine rigging systems
- Includes main ignition key switch function
- Includes emergency stop switch / safety lanyard function
- Supports push-to-choke function on compatible applications
- Includes warning horn function for supported Yamaha warning systems
- Aftermarket alternative to the OEM Yamaha switch panel
Switch Panel Details
- Brand: Pro Marine
- Part Type: Single Engine Main Switch Panel
- Pro Marine Part Number: 82570P
- Replaces OEM: Yamaha 704-82570-13-00 and related 704 / 6R5 switch panel numbers
- Rigging Type: Yamaha 704-Series Compatible Rigging
- Engine Setup: Single Engine
- Functions: Ignition, stop switch, warning horn, push-to-choke
- Application: Compatible Yamaha outboard control systems
- Quantity Sold: Each
FAQ
What does Pro Marine 82570P replace?
This Pro Marine switch panel replaces compatible Yamaha 704-82570 and 6R5-82570 single engine switch panel assemblies.
Is this the OEM Yamaha panel?
No. This is the Pro Marine aftermarket replacement version. The genuine Yamaha OEM version is also available separately.
Does this fit every Yamaha outboard?
No. Fitment depends on the rigging system, harness connector, control style, and original switch panel part number.
Does this panel include the warning horn?
This replacement panel is designed for the same style of Yamaha single engine switch panel system that includes warning horn functionality.
Does this panel support push-to-choke?
Yes. It is intended for compatible Yamaha-style switch panel applications using push-to-choke function.
Is this for single engine installations?
Yes. This is a single engine switch panel and should not be used in place of twin or triple engine panels.
Should I compare my existing part number before ordering?
Yes. Match your existing Yamaha part number, harness connector, and rigging configuration to the cross-reference list before ordering.
