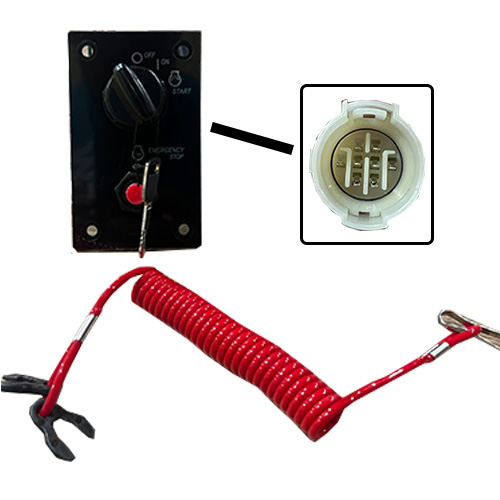

Suzuki Single Engine Ignition Key Switch Panel - 96J26P

The Pro Marine 96J26P Single Engine Switch Panel is an aftermarket replacement ignition and key switch panel for compatible Suzuki four-stroke outboard installations using a single-engine control configuration.

Designed as an alternative to Suzuki OEM switch panel 37100-96J26, this assembly cross-references multiple Suzuki ignition panel numbers, including 37100-93J20, 37100-96J20, 37100-96J21, 37100-96J22, 37100-96J23, 37100-96J24, 37100-96J25, and 37100-96J27.

Supplied application data includes select Suzuki DF9.9 through DF250 four-stroke outboards, including DF40, DF50, DF60, DF70, DF90, DF115, DF140, DF150, DF175, DF200, DF225, and DF250 models. Exact compatibility depends on the engine model, year, and original rigging configuration.

Product Information

• Pro Marine Part Number: 96J26P
• Brand: Pro Marine
• Product Type: Single Engine Ignition Key Switch Panel
• Application: Suzuki Four-Stroke Outboards
• Engine Configuration: Single Engine
• Horsepower Coverage: Select DF9.9-DF250 HP Models
• Application Years: Select 1998-2023 Models
• Primary OEM Reference: 37100-96J26
• OEM Alternative: Suzuki 37100-96J26
• Twin-Engine Alternative: Pro Marine 96J16P

Important Fitment Information

This switch panel does not fit every Suzuki outboard between 9.9 and 250 HP.

The horsepower range represents the Suzuki models included in the supplied application data.

Suzuki used different ignition switch panels, harnesses, and engine control configurations throughout these years.

Before ordering, verify your original Suzuki switch-panel part number, electrical connector, and engine rigging. This listing is for a single-engine installation. Twin-engine installations require the appropriate dual-engine switch panel.

OEM and Cross Reference Numbers

Pro Marine 96J26P is an aftermarket replacement associated with the following Suzuki single-engine switch-panel numbers.

Cross-reference numbers identify related replacement applications. They do not establish a verified chronological supersession order.

What This Part is Used For

The Suzuki single-engine ignition switch panel provides the helm-mounted key switch used to operate the ignition and starting circuit on compatible Suzuki outboard installations.

The panel is designed for boats equipped with one Suzuki outboard engine and the corresponding ignition-switch wiring configuration.

This assembly is commonly replaced when an original switch panel becomes damaged, worn, corroded, or develops unreliable electrical operation.

It can also be used when restoring a helm or replacing an existing Suzuki switch panel that matches one of the listed OEM reference numbers.

Compatible Suzuki Outboard Applications

The following table organizes the supplied Suzuki application data into readable engine families and year ranges.

Some engine families appear in multiple generations, including earlier DF models and later A-series models. These are shown separately to help identify the correct application.

Earlier Suzuki DF-Series Applications

Later Suzuki DF-Series and A-Series Applications

Additional supplied fitment includes later Suzuki DF-series and A-series models. Some applications are identified by model year, while others are identified by Suzuki model and serial information.

Need a Twin-Engine Suzuki Switch Panel?

The 96J26P listed on this page is intended for a single-engine installation.

If your boat is equipped with two Suzuki outboards, Pro Marine USA also offers twin-engine switch panels in both Pro Marine aftermarket and genuine Suzuki OEM versions.

PRO MARINE BRAND - TWIN ENGINE

Pro Marine 96J16P Twin Engine Switch Panel

Aftermarket twin-engine ignition switch panel for compatible Suzuki dual-outboard installations.

View Pro Marine Twin-Engine Panel

GENUINE SUZUKI OEM - TWIN ENGINE

Suzuki OEM 37100-96J16 Twin Engine Switch Panel

Genuine Suzuki OEM twin-engine ignition switch panel for compatible dual-engine Suzuki installations.

View Suzuki OEM Twin-Engine Panel

Common Symptoms and Replacement Reasons

• Ignition key switch is worn or difficult to operate.
• Engine starting operation is intermittent at the helm.
• Original switch panel has physical damage.
• Electrical connections show corrosion or deterioration.
• Ignition switch operation is unreliable.
• Original Suzuki panel is being replaced during a helm restoration.
• An older matching Suzuki switch-panel number needs replacement.

Starting and ignition problems can also be caused by batteries, wiring, fuses, neutral-safety circuits, or other electrical components. Proper diagnosis is recommended before replacing the switch panel.

Installation Tips

• Disconnect battery power before working on the ignition system.
• Confirm the installation uses a single-engine switch-panel configuration.
• Compare the original Suzuki part number with the cross-reference list.
• Verify the electrical connector and harness configuration.
• Inspect existing wiring for corrosion, damage, or loose connections.
• Compare the panel mounting arrangement before making changes to the helm.
• Secure wiring away from sharp edges and moving control components.
• After installation, verify ignition and starting operation.
• Confirm the engine starts only under the correct neutral-safety conditions.

Marine ignition wiring and engine-starting circuits should be serviced by a qualified marine technician when the installer is unfamiliar with Suzuki electrical systems.

Key Features and Benefits

• Pro Marine Brand: Aftermarket alternative to the corresponding Suzuki OEM panel.
• Single Engine Configuration: For compatible boats equipped with one Suzuki outboard.
• Broad Application Coverage: Listed across select Suzuki DF-series four-stroke engines.
• Multiple OEM References: Cross-references numerous Suzuki 37100-series switch-panel numbers.
• Replacement Option: Useful when replacing a worn or damaged original ignition panel.
• OEM Available: Genuine Suzuki 37100-96J26 is also stocked.
• Twin-Engine Options: Pro Marine and Suzuki OEM dual-engine panels are available separately.

Frequently Asked Questions

What is Pro Marine 96J26P?

96J26P is a Pro Marine aftermarket single-engine ignition key switch panel for compatible Suzuki four-stroke outboard installations.

What Suzuki engines does 96J26P fit?

Supplied application data includes select Suzuki DF-series engines from 9.9 through 250 HP, including DF40, DF50, DF60, DF70, DF90, DF115, DF140, DF150, DF175, DF200, DF225, and DF250 families.

Exact compatibility depends on the model, year, and original switch-panel configuration.

Does this fit every Suzuki DF9.9-DF250 outboard?

No. The horsepower range is a summary of listed applications. Suzuki used multiple ignition and rigging configurations across these engines.

Does 96J26P replace Suzuki 37100-96J26?

Yes. Suzuki 37100-96J26 is the primary OEM reference for this Pro Marine aftermarket panel.

Does it cross-reference 37100-96J27?

Yes. Suzuki 37100-96J27 is included in the supplied cross-reference list.

What about older Suzuki 37100-96J20 through 37100-96J25 panels?

These Suzuki numbers are included among the cross references for Pro Marine 96J26P. Verify the original electrical configuration before ordering.

Is a genuine Suzuki OEM version available?

Yes. Pro Marine USA also carries Suzuki OEM 37100-96J26 .

Can I use this panel for a twin-engine Suzuki boat?

This listing is for a single-engine installation. For a compatible twin-engine configuration, see Pro Marine 96J16P or Suzuki OEM 37100-96J16 .

Does this panel work with Suzuki DF115 and DF140 outboards?

Yes, select DF115 and DF140 models are included in the supplied application data, including earlier DF115 and DF140 engines and later DF115A and DF140A variants.

Confirm the exact model and original ignition-panel number.

Will this panel fix an engine that will not start?

Only if the original switch panel is responsible for the starting problem. Battery, wiring, neutral-safety, and other electrical faults can produce similar symptoms.

How do I verify the correct Suzuki key switch panel?

Compare the original panel part number, electrical connector, engine model, and Suzuki rigging configuration.
