1-1/2" Marine Fuel Fill Hose Type A2 - FILLHOSE-112
| Quantity | Price |
| 1 | 11.00 |
Marine Fuel Tank Fill Hose

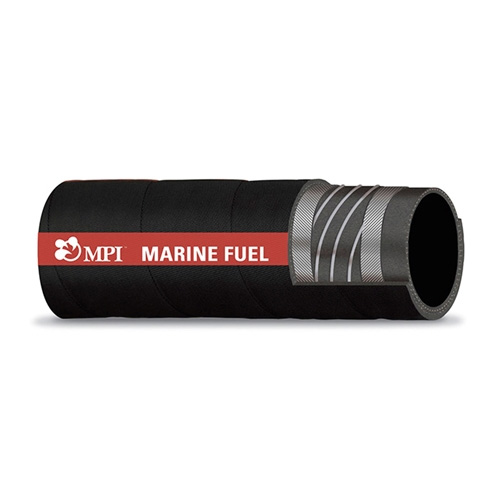

1-1/2" Type A2 Marine Fuel Fill Hose - FILLHOSE-112
FILLHOSE-112 is a 1-1/2" marine Type A2 fuel fill hose designed for the large-diameter fuel connection between the boat's deck-mounted gas fill and fuel tank.
Fuel fill hose is different from the smaller fuel-supply hose that carries gasoline from the tank to the engine. Its job is to safely route fuel from the deck fill fitting into the tank while providing the larger diameter needed during refueling.
Pro Marine also stocks the matching 4-8 German-style stainless-steel hose clamp, a 1-1/2" chrome gas deck fill, and a larger 2" Type A2 fuel fill hose.
Inside Diameter: 1-1/2"
Hose Type: USCG Type A2
Application: Marine Fuel Fill Line
Connects: Deck Fuel Fill to Fuel Tank
Matching Clamp: 4-8
What This Fuel Fill Hose is Used For
FILLHOSE-112 is intended for the fuel-fill portion of a permanently installed marine fuel system.
In a typical installation, the hose runs from the fitting directly behind the deck-mounted fuel cap down to the fuel tank's fill-neck connection.
Common applications include:
- Boat fuel tank fill hose
- Deck fill to fuel tank connection
- Replacement of aged or deteriorated marine fuel fill hose
- Boat restoration and fuel-system rerigging
- New permanent marine fuel tank installations
What Does USCG Type A2 Mean?
Type A2 is a marine fuel-hose classification used for compatible fuel-system applications including fuel fill and vent lines.
Under federal marine fuel-system requirements, Type A hose is constructed to meet a fire-resistance test. Type A2 is a Class 2 hose designation.
The important application distinction for this product is that Type A2 hose is suitable for a marine fuel fill or vent line. It should not be confused with the smaller Type A1 fuel hose commonly used in fuel-feed applications.
This 1-1/2" hose is intended for the deck fill to fuel tank connection.
Do not select fuel hose only by diameter. Fuel fill, vent and tank-to-engine fuel lines have different applications and hose requirements.
Matching 1-1/2" Fuel Fill Hose Clamp
Matching clamp for the 1-1/2" fuel fill hose installation.
Pro Marine's 4-8 German-style clamp has a 27-51mm / 1.05-1.99" clamping range and is made from 316 stainless steel.
Secure the hose at the deck-fill fitting and fuel-tank fill neck according to the requirements of the installation.
View 4-8 German-Style Hose Clamp1-1/2" Chrome Gas Deck Fill
Universal 1-1/2" chrome gas deck fill for compatible marine fuel systems.
The fuel fill hose connects to the hose barb beneath the deck fill and routes gasoline down to the permanent fuel tank.
View 1-1/2" Chrome Gas Deck Fill1-1/2" and 2" Fuel Fill Hose Options
| Size | Fuel Fill Hose | Type | Matching Clamp |
|---|---|---|---|
| 1-1/2" | FILLHOSE-112 | USCG Type A2 | 4-8 |
| 2" | FILLHOSE-2 | USCG Type A2 | 4-9 |
Need 2" Fuel Fill Hose?
2" Type A2 Fuel Fill Hose - FILLHOSE-2
Larger Type A2 fuel fill hose for marine installations using a 2" tank fill and deck-fill connection.
View 2" Fuel Fill Hose
German-Style Hose Clamp - 4-9
Matching clamp option supplied for Pro Marine's 2" Type A2 fuel fill hose.
View 4-9 Hose ClampFuel Fill Hose Installation Tips
- Match the hose inside diameter to the deck fill and fuel-tank fill connection.
- Use marine fuel hose specifically designed for fuel-fill applications.
- Use properly sized corrosion-resistant hose clamps.
- Make sure the hose is fully seated on each fitting before clamping.
- Avoid sharp bends that can restrict fuel flow while filling the tank.
- Route the hose so it cannot be crushed by batteries, storage or other equipment.
- Keep the hose away from sharp edges and moving components.
- Inspect the entire fill hose for cracking, hardening and deterioration.
- Check all connections for fuel seepage after installation.
Fuel fill hose is large and heavily constructed. Plan the routing before cutting the hose.
A smooth path from the deck fill to the tank helps fuel flow freely during refueling and reduces the chance of creating a low spot, restriction or kink.
When Should Marine Fuel Fill Hose Be Replaced?
Fuel fill hose should be inspected whenever the fuel tank, deck fill or surrounding rigging is serviced.
Consider replacement if you find:
- Cracking in the outer hose
- Dry, hardened or brittle hose
- Soft or swollen areas
- Abrasion or chafing
- Fuel odor around the fill-hose area
- Visible fuel seepage
- Damaged or heavily corroded clamps
- Hose that no longer fits securely on the fill fitting or tank
How the Marine Fuel Fill System Works
When gasoline is added through the deck-mounted gas cap, it travels through the large-diameter fuel fill hose and into the permanent fuel tank.
A separate fuel-tank vent system allows displaced air to escape while the tank is being filled.
The fuel fill hose, deck fill, tank connection and vent system all need to remain correctly routed and unobstructed for reliable refueling.
Key Features and Benefits
- 1-1/2" marine fuel fill hose
- USCG Type A2 hose
- Designed for deck-fill to fuel-tank applications
- Large diameter for marine fuel filling
- Matching 4-8 German-style clamp available
- Matching 1-1/2" chrome deck fill available
- 2" Type A2 fuel fill hose also available
- Useful for new fuel-system installations and replacement projects
FAQ
What size is FILLHOSE-112?
FILLHOSE-112 is 1-1/2" inside-diameter marine fuel fill hose.
What is this hose used for?
It connects the boat's deck-mounted fuel fill to the fill connection on
the permanent marine fuel tank.
Is FILLHOSE-112 Type A2?
Yes. This hose is listed as USCG Type A2.
Can I use this as the fuel hose from the tank to the engine?
This product is intended as large-diameter fuel fill hose. Use the proper
marine fuel-supply hose specified for the tank-to-engine portion of the
fuel system.
Which clamp fits the 1-1/2" fuel fill hose?
Pro Marine pairs it with the
4-8 German-Style Hose Clamp
.
Do you stock a 1-1/2" fuel deck fill?
Yes. Pro Marine stocks the
3-5740 Chrome 1-1/2" Gas Deck Fill
.
Do you have 2" fuel fill hose?
Yes. Pro Marine also stocks
FILLHOSE-2 2" Type A2 Fuel Fill Hose
.
How do I know whether I need 1-1/2" or 2" hose?
Measure or verify the hose connection size on both the deck fill and the
fuel tank. The replacement hose needs to match the fittings used in the
boat's fuel-fill system.
