Rule 500GPH Livewell / Baitwell Replacement Cartridge

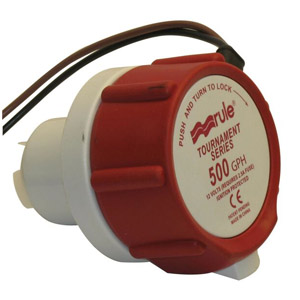

Rule 29-45DR 500GPH Livewell Pump Cartridge - 12V DC
The Rule 29-45DR Livewell Pump Cartridge is a 500GPH replacement motor cartridge for compatible Rule Tournament Series livewell and baitwell pump assemblies. This cartridge-style pump motor is designed for easy replacement if the motor expires, while allowing the fittings and hose to remain installed.
The cartridge feature also provides access to the impeller for cleaning and maintenance, helping keep your livewell or baitwell system flowing properly.
Product Specifications
| Specification | Details |
|---|---|
| Part Number | 29-45DR |
| Flow Rate | 500 GPH |
| Voltage | 12V DC |
| Amp Draw | 2.1 amps |
| Recommended Fuse Size | 2.5 amp |
| Application | Livewell / baitwell replacement motor cartridge |
This is a replacement motor cartridge, not a complete pump assembly. Verify your existing pump series, cartridge style, voltage, and required flow rate before ordering.
Other Flow Rate Options Available
Rule 29-46DR 800GPH Livewell Pump Cartridge
Mid-range replacement cartridge option for compatible Rule livewell and baitwell pump systems where an 800GPH motor cartridge is required.
Rule 29-67DR 1100GPH Livewell Pump Cartridge
Higher-flow replacement cartridge option for compatible Rule livewell and baitwell pump systems where an 1100GPH motor cartridge is needed.
What This Part is Used For
Livewell and baitwell pumps circulate water to help keep bait and fish healthy while the boat is in use. If your pump motor becomes weak, noisy, clogged, or stops running, replacing the motor cartridge can restore water flow without replacing the entire installed pump setup.
The Rule cartridge design makes service easier because the motor cartridge can be removed while the pump base, hose, and fittings stay in place. It also gives access to the impeller for routine cleaning and maintenance.
Key Features and Benefits
- 500GPH livewell / baitwell replacement motor cartridge
- 12V DC marine pump cartridge
- 2.1 amp draw with 2.5 amp fuse recommendation
- Cartridge design allows motor replacement without removing hose or fittings
- Provides access to the impeller for cleaning and maintenance
- Helps restore proper livewell and baitwell water circulation
- Great replacement option for compatible Rule Tournament Series pump assemblies
FAQ
Is this a complete livewell pump?
No. This listing is for the replacement motor cartridge only.
What is the flow rate?
This cartridge is rated at 500 gallons per hour.
What voltage does it use?
This is a 12V DC livewell / baitwell pump cartridge.
What is the amp draw?
The listed amp draw is 2.1 amps.
What fuse size should be used?
The listed fuse size is 2.5 amps.
Can I replace the cartridge without removing the hose?
Yes. The cartridge design allows the motor cartridge to be replaced while the
fittings and hose remain installed.
Do you offer higher-flow versions?
Yes. The 800GPH and 1100GPH cartridge options are linked above.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Terms
29-45DR, Rule 29-45DR, Rule 500GPH livewell pump cartridge, 500GPH baitwell pump cartridge, Tournament Series livewell pump cartridge, Rule replacement motor cartridge, Rule cartridge pump motor, 12V DC livewell pump, 12V baitwell pump cartridge, 2.1 amp livewell pump, 2.5 amp fuse livewell pump, cartridge livewell pump, livewell replacement cartridge, baitwell replacement cartridge, Rule FC Tournament Series pump, 29-46DR, Rule 800GPH cartridge, 29-67DR, Rule 1100GPH cartridge
Rule 1100GPH Livewell / Baitwell Replacement Cartridge

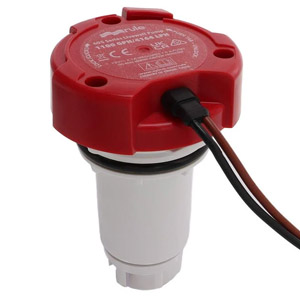

Rule 29-67DR 1100GPH Livewell Pump Cartridge - 12V DC
The Rule 29-67DR Livewell Pump Cartridge is a 1100GPH replacement motor cartridge for compatible Rule livewell and baitwell pump systems. This high-flow cartridge is built to help deliver strong water circulation for keeping bait and catch alive.
Rule cartridge pumps are designed for easy service, with a simple twist-and-click motor cartridge removal system that makes replacement easier in hard-to-reach areas of the boat.
Product Specifications
| Specification | Details |
|---|---|
| Part Number | 29-67DR |
| Flow Rate | 1100 GPH |
| Voltage | 12V DC |
| Application | Livewell / baitwell replacement motor cartridge |
| Design | One-hand twist-and-click cartridge removal |
This is a replacement motor cartridge, not a complete pump assembly. Verify your existing pump series, cartridge style, voltage, and required flow rate before ordering. This cartridge is intended for compatible Rule livewell / baitwell cartridge pump assemblies.
Other Flow Rate Options Available
Rule 29-45DR 500GPH Livewell Pump Cartridge
Lower-flow replacement cartridge option for compatible Rule livewell and baitwell pump systems where a 500GPH motor cartridge is required.
Rule 29-46DR 800GPH Livewell Pump Cartridge
Mid-range replacement cartridge option for compatible Rule livewell and baitwell pump systems where an 800GPH motor cartridge is needed.
What This Part is Used For
Livewell and baitwell pumps circulate water to help keep bait and catch alive while the boat is in use. A strong, efficient pump helps maintain oxygenated water movement inside the livewell or baitwell.
The Rule 1100GPH cartridge is a high-flow replacement motor cartridge for compatible systems. It is a good option when your existing motor cartridge is weak, failed, noisy, or no longer producing the water movement your livewell requires.
Key Features and Benefits
- 1100GPH high-flow livewell / baitwell replacement motor cartridge
- 12V DC marine pump cartridge
- Simple one-hand twist-and-click motor cartridge removal and replacement
- High-efficiency pump design helps support proper bait and catch health
- Designed for strong water circulation in livewell and baitwell systems
- Useful for hard-to-reach pump locations where cartridge replacement saves time
- Great replacement option for compatible Rule livewell cartridge pump assemblies
FAQ
Is this a complete livewell pump?
No. This listing is for the replacement motor cartridge only.
What is the flow rate?
This cartridge is rated at 1100 gallons per hour.
What voltage does it use?
This is a 12V DC livewell / baitwell pump cartridge.
How does the cartridge come out?
Rule cartridge pumps use a simple twist-and-click style removal system that
makes motor cartridge replacement easier, especially in tight spaces.
Why choose the 1100GPH version?
The 1100GPH cartridge is the high-flow option for compatible livewell and
baitwell systems that need more water circulation.
Do you offer lower-flow versions?
Yes. The 500GPH and 800GPH cartridge options are linked above.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Terms
29-67DR, Rule 29-67DR, Rule 1100GPH livewell pump cartridge, 1100GPH baitwell pump cartridge, Rule replacement motor cartridge, Rule cartridge pump motor, Rule livewell replacement motor, 12V DC livewell pump, 12V baitwell pump cartridge, high flow livewell pump cartridge, twist and click cartridge pump, one hand cartridge removal pump, livewell replacement cartridge, baitwell replacement cartridge, high efficiency livewell pump, Rule Tournament Series pump, 29-45DR, Rule 500GPH cartridge, 29-46DR, Rule 800GPH cartridge
Rule 800GPH Livewell Pump - Straight Seacock Model

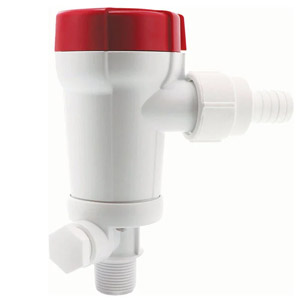

Rule 603FC 800GPH Livewell Pump
The Rule 603FC 800GPH Livewell Pump is a 12V livewell and baitwell pump designed for straight seacock installations. It provides dependable water circulation to help keep bait and catch alive while on the water.
This Rule Livewell Pump Series model features high-efficiency water circulation, advanced anti-airlock protection, a secondary inlet port for a washdown pump connection, and a simple one-hand push-and-twist motor cartridge design for easier service.
Factory Rule Specifications
| Specification | Details |
|---|---|
| Manufacturer | Rule Industries / Xylem |
| Part Number | 603FC |
| Open Flow Rating | 800 GPH |
| Inlet Style | Straight Seacock |
| Inlet Size | 3/4" NPT Thread |
| Discharge Size | 3/4" Hose Barb |
| Voltage | 12 VDC |
| Amp Draw @ 12V DC | 4.1 Amp |
| Fuse Size | 7.5 Amp |
| Replacement Motor Cartridge | 66DR |
The Rule factory chart lists the 603FC 800GPH pump as using the 66DR replacement motor cartridge. The 67DR cartridge is listed for the 1100GPH models, not the 603FC 800GPH model.
This 603FC model is the straight seacock inlet version with a 3/4" NPT inlet thread and 3/4" hose barb discharge. Verify your seacock, hose size, inlet thread, and plumbing layout before ordering.
Replacement Cartridge
Rule Replacement Motor Cartridge
Rule livewell pumps use a simple push-and-twist motor cartridge system for easier service in hard-to-reach areas of the boat.
Factory note: The 603FC 800GPH pump uses the 66DR replacement motor cartridge. The linked 29-67DR / 67DR cartridge is for 1100GPH Rule livewell pump models, so verify the cartridge number before ordering.
Other 800GPH Rule Pump Option

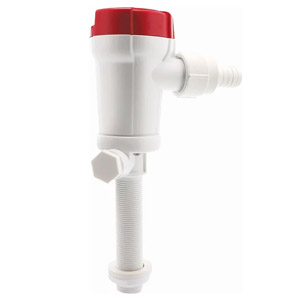

Rule 603STC 800GPH Livewell Pump with Thru-Hull Adapter
Need the 800GPH version with a thru-hull adapter? The Rule 603STC is the straight thru-hull version and uses a 3/4" NPSM inlet thread with a 3/4" hose barb discharge.
What This Pump is Used For
Livewell and baitwell pumps circulate water to help maintain healthy bait and catch. The Rule 603FC is designed for boats using a straight seacock inlet setup and provides 800GPH open flow performance.
The Rule Livewell Pump Series is built for modern fishing boats, including applications exposed to high-speed water intake scoop pressure. Its efficient motor and impeller design helps maintain water circulation inside the livewell.
Key Features and Benefits
- 800GPH open flow livewell / baitwell pump
- Straight seacock inlet style
- 3/4" NPT inlet thread
- 3/4" hose barb discharge
- 12 VDC operation
- 4.1 amp draw with 7.5 amp fuse rating
- Uses Rule 66DR replacement motor cartridge
- Simple one-hand push-and-twist cartridge removal and replacement
- Advanced anti-airlock protection
- Secondary inlet port for washdown pump connection
- High-efficiency motor and impeller design for livewell circulation
- Designed to handle high inlet pressure from high-speed water pickup scoops
- Threaded nylon hose barb attachments for adaptable hose mounting
Rule Livewell Pump Model Comparison
| Model | Flow | Inlet Style | Inlet Thread | Discharge | Cartridge |
|---|---|---|---|---|---|
| 603FC | 800 GPH | Straight Seacock | 3/4" NPT | 3/4" Hose Barb | 66DR |
| 603STC | 800 GPH | Straight Thru-Hull | 3/4" NPSM | 3/4" Hose Barb | 66DR |
| 605FC | 1100 GPH | Straight Seacock | 3/4" NPT | 1-1/8" Hose Barb | 67DR |
Common Marine Applications
| Application | Use |
|---|---|
| Livewell Systems | Circulates water to help keep catch alive |
| Baitwell Systems | Maintains steady water flow for bait health |
| Straight Seacock Installations | Designed for 3/4" NPT straight seacock inlet setups |
| Washdown Connections | Secondary port can connect to a washdown pump system |
| High-Speed Pickup Systems | Built with high inlet pressure capability for faster watercraft |
FAQ
What is the flow rate of the Rule 603FC?
The Rule 603FC is rated at 800GPH open flow.
What inlet style does this pump use?
The 603FC uses a straight seacock inlet style.
What inlet and discharge sizes does the 603FC have?
It has a 3/4" NPT inlet thread and a 3/4" hose barb discharge.
What cartridge does the 603FC use?
The Rule factory chart lists the 603FC as using the 66DR
replacement motor cartridge.
Does this pump use the 67DR cartridge?
No. The 67DR cartridge is listed for the 1100GPH Rule models. The 603FC
800GPH model uses the 66DR cartridge.
Does this pump help prevent airlock?
Yes. The Rule Livewell Pump Series includes advanced anti-airlock protection.
Can this pump connect to a washdown pump?
Yes. The pump includes a secondary inlet port for washdown pump connection.
What is the electrical rating?
The 603FC is 12 VDC, draws 4.1 amps at 12V DC, and uses a 7.5 amp fuse.
Do you sell the thru-hull adapter version?
Yes. The Rule 603STC 800GPH pump with straight thru-hull configuration is
linked above.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Terms
603FC, Rule 603FC, Rule 800GPH livewell pump, Rule 800 GPH baitwell pump, Rule Livewell Pump Series, Rule straight seacock livewell pump, straight seacock inlet pump, 3/4 NPT livewell pump, 3/4 hose barb discharge pump, 12 VDC livewell pump, 4.1 amp livewell pump, 7.5 amp fuse livewell pump, Rule 66DR cartridge, 66DR replacement motor cartridge, twist and click cartridge pump, push and twist cartridge pump, anti airlock livewell pump, advanced anti-airlock protection, secondary inlet port, washdown pump connection, high inlet pressure livewell pump, high speed water pickup scoop pump, threaded nylon hose barb pump, 603STC, Rule 603STC, 800GPH livewell pump with thru hull adapter, 29-67DR, 67DR, Rule 1100GPH cartridge
Rule 1100GPH Livewell Pump - Straight Thru-Hull Model
Rule 605STC 1100GPH Livewell Pump
The Rule 605STC 1100GPH Livewell Pump is a high-flow 12V livewell and baitwell pump designed for straight thru-hull installations. It provides strong water circulation to help keep bait and catch healthy while fishing.
The Rule Livewell Pump Series features high-efficiency water circulation, advanced anti-airlock protection, a secondary inlet port for washdown pump connection, and a simple push-and-twist cartridge system for easier motor replacement.
Factory Rule Specifications
| Specification | Details |
|---|---|
| Manufacturer | Rule Industries / Xylem |
| Part Number | 605STC |
| Open Flow Rating | 1100 GPH |
| Inlet Style | Straight Thru-Hull |
| Inlet Size | 3/4" NPSM Thread |
| Discharge Size | 1-1/8" Hose Barb |
| Voltage | 12 VDC |
| Amp Draw @ 12V DC | 4.7 Amp |
| Fuse Size | 7.5 Amp |
| Replacement Motor Cartridge | 67DR / 29-67DR |
This 605STC model is the straight thru-hull version with a 3/4" NPSM inlet thread and 1-1/8" hose barb discharge. Verify your thru-hull fitting, hose size, inlet thread, and plumbing layout before ordering.
Replacement Cartridge
Rule 29-67DR / 67DR 1100GPH Livewell Pump Cartridge
The Rule factory chart lists the 605STC 1100GPH pump as using the 67DR replacement motor cartridge. This cartridge allows the motor to be serviced without replacing the complete pump body or plumbing.
Alternate 1100GPH Mounting Option
Rule 605FC 1100GPH Livewell Pump - Straight Seacock Model
Need the 1100GPH seacock version instead? The Rule 605FC is the straight seacock model with a 3/4" NPT inlet thread, 1-1/8" hose barb discharge, and 67DR replacement cartridge.
Want an 800GPH Rule Livewell Pump?
Rule 603FC 800GPH Livewell Pump
Lower-flow 800GPH straight seacock model with a 3/4" NPT inlet thread, 3/4" hose barb discharge, and 12 VDC operation.
Rule 603STC 800GPH Livewell Pump
Lower-flow 800GPH straight thru-hull model with a 3/4" NPSM inlet thread, 3/4" hose barb discharge, and 12 VDC operation.
What This Pump is Used For
Livewell and baitwell pumps circulate water to help maintain healthy bait and catch. The Rule 605STC is designed for boats using a straight thru-hull inlet setup and provides 1100GPH open flow performance for applications that need stronger water movement than an 800GPH pump.
The Rule Livewell Pump Series is engineered for modern fishing boats, including applications exposed to high-speed water intake scoop pressure. Its efficient motor and impeller design helps maintain steady circulation inside the livewell or baitwell.
Key Features and Benefits
- 1100GPH open flow livewell / baitwell pump
- Straight thru-hull inlet style
- 3/4" NPSM inlet thread
- 1-1/8" hose barb discharge
- 12 VDC operation
- 4.7 amp draw with 7.5 amp fuse rating
- Uses Rule 67DR / 29-67DR replacement motor cartridge
- Simple one-hand push-and-twist cartridge removal and replacement
- Advanced anti-airlock protection
- Secondary inlet port for washdown pump connection
- High-efficiency motor and impeller design for livewell circulation
- Designed to handle high inlet pressure from high-speed water pickup scoops
- Threaded nylon hose barb attachments for adaptable hose mounting
Rule Livewell Pump Model Comparison
| Model | Flow | Inlet Style | Inlet Thread | Discharge | Cartridge |
|---|---|---|---|---|---|
| 605STC | 1100 GPH | Straight Thru-Hull | 3/4" NPSM | 1-1/8" Hose Barb | 67DR / 29-67DR |
| 605FC | 1100 GPH | Straight Seacock | 3/4" NPT | 1-1/8" Hose Barb | 67DR / 29-67DR |
| 603STC | 800 GPH | Straight Thru-Hull | 3/4" NPSM | 3/4" Hose Barb | 66DR |
| 603FC | 800 GPH | Straight Seacock | 3/4" NPT | 3/4" Hose Barb | 66DR |
Common Marine Applications
| Application | Use |
|---|---|
| Livewell Systems | High-flow circulation to help keep catch alive |
| Baitwell Systems | Maintains strong water flow for bait health |
| Straight Thru-Hull Installations | Designed for 3/4" NPSM straight thru-hull inlet setups |
| Washdown Connections | Secondary port can connect to a washdown pump system |
| High-Speed Pickup Systems | Built with high inlet pressure capability for faster watercraft |
FAQ
What is the flow rate of the Rule 605STC?
The Rule 605STC is rated at 1100GPH open flow.
What inlet style does this pump use?
The 605STC uses a straight thru-hull inlet style.
What inlet and discharge sizes does the 605STC have?
It has a 3/4" NPSM inlet thread and a 1-1/8" hose barb discharge.
What replacement cartridge does the 605STC use?
The 605STC uses the 67DR / 29-67DR replacement motor cartridge.
What is the difference between 605STC and 605FC?
The 605STC is the straight thru-hull model with a 3/4" NPSM inlet thread. The
605FC is the straight seacock model with a 3/4" NPT inlet thread.
Do you offer 800GPH versions?
Yes. The 603STC straight thru-hull model and 603FC straight seacock model are
linked above.
Does this pump help prevent airlock?
Yes. The Rule Livewell Pump Series includes advanced anti-airlock protection.
Can this pump connect to a washdown pump?
Yes. The pump includes a secondary inlet port for washdown pump connection.
What is the electrical rating?
The 605STC is 12 VDC, draws 4.7 amps at 12V DC, and uses a 7.5 amp fuse.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Terms
605STC, Rule 605STC, Rule 1100GPH livewell pump, Rule 1100 GPH baitwell pump, Rule Livewell Pump Series, Rule straight thru-hull livewell pump, straight thru hull inlet pump, 3/4 NPSM livewell pump, 1-1/8 hose barb discharge pump, 12 VDC livewell pump, 4.7 amp livewell pump, 7.5 amp fuse livewell pump, Rule 67DR cartridge, 29-67DR, Rule 29-67DR, 1100GPH replacement cartridge, twist and click cartridge pump, push and twist cartridge pump, anti airlock livewell pump, advanced anti-airlock protection, secondary inlet port, washdown pump connection, high inlet pressure livewell pump, high speed water pickup scoop pump, threaded nylon hose barb pump, 605FC, Rule 605FC, 603FC, Rule 603FC, 603STC, Rule 603STC, 800GPH Rule livewell pump
Rule 1100GPH Livewell Pump - Straight Seacock Model
Rule 605FC 1100GPH Livewell Pump
The Rule 605FC 1100GPH Livewell Pump is a high-flow 12V livewell and baitwell pump designed for straight seacock installations. It provides strong water circulation to help keep bait and catch healthy while fishing.
The Rule Livewell Pump Series features a high-efficiency motor and impeller design, advanced anti-airlock protection, a secondary inlet port for washdown pump connection, and a simple push-and-twist cartridge system for easier motor replacement.
Factory Rule Specifications
| Specification | Details |
|---|---|
| Manufacturer | Rule Industries / Xylem |
| Part Number | 605FC |
| Open Flow Rating | 1100 GPH |
| Inlet Style | Straight Seacock |
| Inlet Size | 3/4" NPT Thread |
| Discharge Size | 1-1/8" Hose Barb |
| Voltage | 12 VDC |
| Amp Draw @ 12V DC | 4.7 Amp |
| Fuse Size | 7.5 Amp |
| Replacement Motor Cartridge | 67DR / 29-67DR |
This 605FC model is the straight seacock version with a 3/4" NPT inlet thread and 1-1/8" hose barb discharge. Verify your seacock, hose size, inlet thread, and plumbing layout before ordering.
Replacement Cartridge
Rule 29-67DR / 67DR 1100GPH Livewell Pump Cartridge
The Rule factory chart lists the 605FC 1100GPH pump as using the 67DR replacement motor cartridge. This cartridge allows the motor to be serviced without replacing the complete pump body or plumbing.
Alternate 1100GPH Mounting Option
Rule 605STC 1100GPH Livewell Pump - Straight Thru-Hull Model
Need the 1100GPH thru-hull version instead? The Rule 605STC is the straight thru-hull model with a 3/4" NPSM inlet thread, 1-1/8" hose barb discharge, and 67DR replacement cartridge.
Want an 800GPH Rule Livewell Pump?
Rule 603FC 800GPH Livewell Pump
Lower-flow 800GPH straight seacock model with a 3/4" NPT inlet thread, 3/4" hose barb discharge, and 12 VDC operation.
Rule 603STC 800GPH Livewell Pump
Lower-flow 800GPH straight thru-hull model with a 3/4" NPSM inlet thread, 3/4" hose barb discharge, and 12 VDC operation.
What This Pump is Used For
Livewell and baitwell pumps circulate water to help maintain healthy bait and catch. The Rule 605FC is designed for boats using a straight seacock inlet setup and provides 1100GPH open flow performance for applications that need stronger water movement than an 800GPH pump.
The Rule Livewell Pump Series is engineered for modern fishing boats, including applications exposed to high-speed water intake scoop pressure. Its efficient motor and impeller design helps maintain steady circulation inside the livewell or baitwell.
Key Features and Benefits
- 1100GPH open flow livewell / baitwell pump
- Straight seacock inlet style
- 3/4" NPT inlet thread
- 1-1/8" hose barb discharge
- 12 VDC operation
- 4.7 amp draw with 7.5 amp fuse rating
- Uses Rule 67DR / 29-67DR replacement motor cartridge
- Simple one-hand push-and-twist cartridge removal and replacement
- Advanced anti-airlock protection
- Secondary inlet port for washdown pump connection
- High-efficiency motor and impeller design for livewell circulation
- Designed to handle high inlet pressure from high-speed water pickup scoops
- Threaded nylon hose barb attachments for adaptable hose mounting
Rule Livewell Pump Model Comparison
| Model | Flow | Inlet Style | Inlet Thread | Discharge | Cartridge |
|---|---|---|---|---|---|
| 605FC | 1100 GPH | Straight Seacock | 3/4" NPT | 1-1/8" Hose Barb | 67DR / 29-67DR |
| 605STC | 1100 GPH | Straight Thru-Hull | 3/4" NPSM | 1-1/8" Hose Barb | 67DR / 29-67DR |
| 603FC | 800 GPH | Straight Seacock | 3/4" NPT | 3/4" Hose Barb | 66DR |
| 603STC | 800 GPH | Straight Thru-Hull | 3/4" NPSM | 3/4" Hose Barb | 66DR |
Common Marine Applications
| Application | Use |
|---|---|
| Livewell Systems | High-flow circulation to help keep catch alive |
| Baitwell Systems | Maintains strong water flow for bait health |
| Straight Seacock Installations | Designed for 3/4" NPT straight seacock inlet setups |
| Washdown Connections | Secondary port can connect to a washdown pump system |
| High-Speed Pickup Systems | Built with high inlet pressure capability for faster watercraft |
FAQ
What is the flow rate of the Rule 605FC?
The Rule 605FC is rated at 1100GPH open flow.
What inlet style does this pump use?
The 605FC uses a straight seacock inlet style.
What inlet and discharge sizes does the 605FC have?
It has a 3/4" NPT inlet thread and a 1-1/8" hose barb discharge.
What replacement cartridge does the 605FC use?
The 605FC uses the 67DR / 29-67DR replacement motor cartridge.
What is the difference between 605FC and 605STC?
The 605FC is the straight seacock model with a 3/4" NPT inlet thread. The
605STC is the straight thru-hull model with a 3/4" NPSM inlet thread.
Do you offer 800GPH versions?
Yes. The 603FC straight seacock model and 603STC straight thru-hull model are
linked above.
Does this pump help prevent airlock?
Yes. The Rule Livewell Pump Series includes advanced anti-airlock protection.
Can this pump connect to a washdown pump?
Yes. The pump includes a secondary inlet port for washdown pump connection.
What is the electrical rating?
The 605FC is 12 VDC, draws 4.7 amps at 12V DC, and uses a 7.5 amp fuse.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Terms
605FC, Rule 605FC, Rule 1100GPH livewell pump, Rule 1100 GPH baitwell pump, Rule Livewell Pump Series, Rule straight seacock livewell pump, straight seacock inlet pump, 3/4 NPT livewell pump, 1-1/8 hose barb discharge pump, 12 VDC livewell pump, 4.7 amp livewell pump, 7.5 amp fuse livewell pump, Rule 67DR cartridge, 29-67DR, Rule 29-67DR, 1100GPH replacement cartridge, twist and click cartridge pump, push and twist cartridge pump, anti airlock livewell pump, advanced anti-airlock protection, secondary inlet port, washdown pump connection, high inlet pressure livewell pump, high speed water pickup scoop pump, threaded nylon hose barb pump, 605STC, Rule 605STC, 603FC, Rule 603FC, 603STC, Rule 603STC, 800GPH Rule livewell pump
Rule 800GPH Livewell Pump - Straight Thru-Hull Model
Rule 603STC 800GPH Livewell Pump
The Rule 603STC 800GPH Livewell Pump is a 12V livewell and baitwell pump designed for straight thru-hull installations. It provides dependable water circulation to help keep bait and catch alive while fishing.
This Rule Livewell Pump Series model features high-efficiency water circulation, advanced anti-airlock protection, a secondary inlet port for washdown pump connection, and a one-hand push-and-twist motor cartridge design for easier service.
Factory Rule Specifications
| Specification | Details |
|---|---|
| Manufacturer | Rule Industries / Xylem |
| Part Number | 603STC |
| Open Flow Rating | 800 GPH |
| Inlet Style | Straight Thru-Hull |
| Inlet Size | 3/4" NPSM Thread |
| Discharge Size | 3/4" Hose Barb |
| Voltage | 12 VDC |
| Amp Draw @ 12V DC | 4.1 Amp |
| Fuse Size | 7.5 Amp |
| Replacement Motor Cartridge | 29-67DR / 1100GPH Replacement Cartridge |
This 603STC model is the straight thru-hull version with a 3/4" NPSM inlet thread and 3/4" hose barb discharge. Verify your thru-hull fitting, hose size, inlet thread, and plumbing layout before ordering.
Replacement Cartridge
Rule 29-67DR 1100GPH Livewell Pump Cartridge
Replacement motor cartridge for compatible Rule livewell pump assemblies. The push-and-twist cartridge design makes it easier to service the pump motor in tight spaces without removing the complete pump body or plumbing.
Related 800GPH Seacock Model
Rule 603FC 800GPH Livewell Pump - Straight Seacock Model
Need the seacock version instead? The Rule 603FC is the 800GPH straight seacock model with a 3/4" NPT inlet thread and 3/4" hose barb discharge.
Want an 1100GPH Rule Livewell Pump?
Rule 605STC 1100GPH Livewell Pump
Higher-flow 1100GPH straight thru-hull model with a 3/4" NPSM inlet thread and 1-1/8" hose barb discharge.
Rule 605FC 1100GPH Livewell Pump
Higher-flow 1100GPH straight seacock model with a 3/4" NPT inlet thread and 1-1/8" hose barb discharge.
What This Pump is Used For
Livewell and baitwell pumps circulate water to help maintain healthy bait and catch. The Rule 603STC is designed for boats using a straight thru-hull inlet setup and provides 800GPH open flow performance.
The Rule Livewell Pump Series is built for modern fishing boats, including applications exposed to high-speed water intake scoop pressure. Its efficient motor and impeller design helps maintain steady water circulation inside the livewell or baitwell.
Key Features and Benefits
- 800GPH open flow livewell / baitwell pump
- Straight thru-hull inlet style
- 3/4" NPSM inlet thread
- 3/4" hose barb discharge
- 12 VDC operation
- 4.1 amp draw with 7.5 amp fuse rating
- Push-and-twist cartridge removal and replacement
- Replacement 29-67DR cartridge linked above
- Advanced anti-airlock protection
- Secondary inlet port for washdown pump connection
- High-efficiency motor and impeller design for livewell circulation
- Designed to handle high inlet pressure from high-speed water pickup scoops
- Threaded nylon hose barb attachments for adaptable hose mounting
Rule Livewell Pump Model Comparison
| Model | Flow | Inlet Style | Inlet Thread | Discharge | Cartridge Link |
|---|---|---|---|---|---|
| 603STC | 800 GPH | Straight Thru-Hull | 3/4" NPSM | 3/4" Hose Barb | 29-67DR Linked Above |
| 603FC | 800 GPH | Straight Seacock | 3/4" NPT | 3/4" Hose Barb | 29-67DR Linked Above |
| 605STC | 1100 GPH | Straight Thru-Hull | 3/4" NPSM | 1-1/8" Hose Barb | 29-67DR |
| 605FC | 1100 GPH | Straight Seacock | 3/4" NPT | 1-1/8" Hose Barb | 29-67DR |
Common Marine Applications
| Application | Use |
|---|---|
| Livewell Systems | Circulates water to help keep catch alive |
| Baitwell Systems | Maintains steady water flow for bait health |
| Straight Thru-Hull Installations | Designed for 3/4" NPSM straight thru-hull inlet setups |
| Washdown Connections | Secondary port can connect to a washdown pump system |
| High-Speed Pickup Systems | Built with high inlet pressure capability for faster watercraft |
FAQ
What is the flow rate of the Rule 603STC?
The Rule 603STC is rated at 800GPH open flow.
What inlet style does this pump use?
The 603STC uses a straight thru-hull inlet style.
What inlet and discharge sizes does the 603STC have?
It has a 3/4" NPSM inlet thread and a 3/4" hose barb discharge.
What replacement cartridge is linked for this pump?
The linked replacement cartridge is the
Rule 29-67DR 1100GPH Livewell Pump Cartridge.
What is the difference between 603STC and 603FC?
The 603STC is the straight thru-hull model with a 3/4" NPSM inlet thread.
The 603FC is the straight seacock model with a 3/4" NPT inlet thread.
Do you offer 1100GPH versions?
Yes. The 605STC straight thru-hull model and 605FC straight seacock model are
linked above.
Does this pump help prevent airlock?
Yes. The Rule Livewell Pump Series includes advanced anti-airlock protection.
Can this pump connect to a washdown pump?
Yes. The pump includes a secondary inlet port for washdown pump connection.
What is the electrical rating?
The 603STC is 12 VDC, draws 4.1 amps at 12V DC, and uses a 7.5 amp fuse.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Terms
603STC, Rule 603STC, Rule 800GPH livewell pump, Rule 800 GPH baitwell pump, Rule Livewell Pump Series, Rule straight thru-hull livewell pump, straight thru hull inlet pump, 3/4 NPSM livewell pump, 3/4 hose barb discharge pump, 12 VDC livewell pump, 4.1 amp livewell pump, 7.5 amp fuse livewell pump, 29-67DR, Rule 29-67DR, 1100GPH replacement cartridge, Rule 1100GPH cartridge, twist and click cartridge pump, push and twist cartridge pump, anti airlock livewell pump, advanced anti-airlock protection, secondary inlet port, washdown pump connection, high inlet pressure livewell pump, high speed water pickup scoop pump, threaded nylon hose barb pump, 603FC, Rule 603FC, straight seacock livewell pump, 605STC, Rule 605STC, 1100GPH straight thru-hull pump, 605FC, Rule 605FC, 1100GPH straight seacock pump
