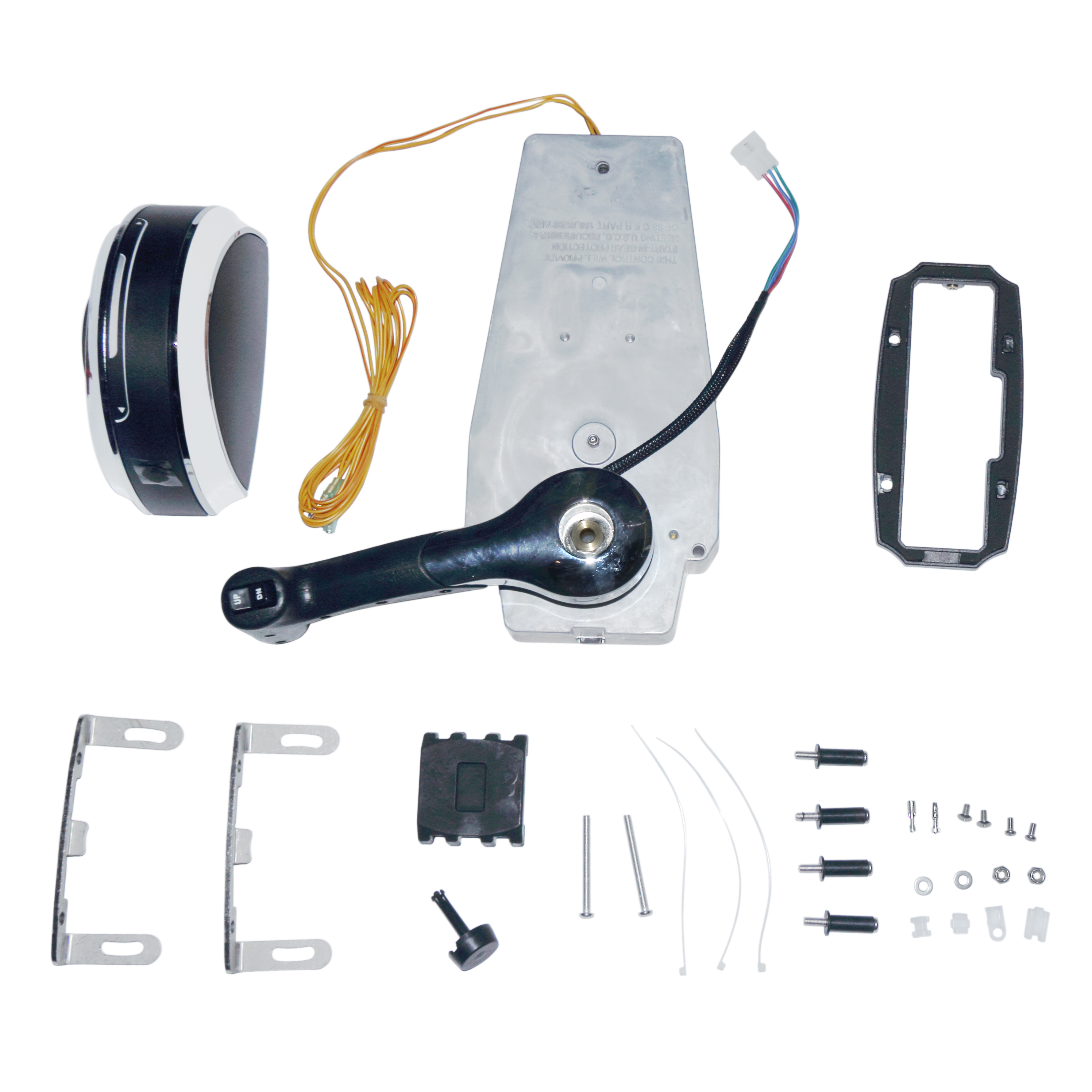

8M0059686P Mercury 14-Pin Gen 2 Binnacle Top Mount Control

The Pro Marine 8M0059686P Binnacle / Top Mount Control is an aftermarket remote control for compatible Mercury rigging systems using a 14-pin electrical connection and Gen 2-style mechanical control cables.

Designed for console and binnacle-mount installations, this control is an aftermarket replacement option for Mercury control numbers including 8M0041431, 8M0059686, 8M4507538, and 883711A12.

Product Information

• Pro Marine Part Number: 8M0059686P
• Brand: Pro Marine
• Part Type: Binnacle / Top Mount Remote Control
• Application: Compatible Mercury Rigging Systems
• Electrical Connection: 14-Pin
• Control Cable Type: Mercury Gen 2 Style
• Mounting Style: Top / Console / Binnacle Mount
• OEM Alternative: Mercury 8M4507538

Important Fitment Note

Control boxes should not be ordered by engine horsepower alone. Mercury used different electrical connector styles and different mechanical control-cable generations across its rigging systems.

This control is specifically for compatible applications requiring a 14-pin electrical connection and Mercury Gen 2-style control cables.

Verify the connector style, cable type, mounting arrangement, and original control-box part number before ordering. A Mercury control using an 8-pin connection, Gen 1 cables, digital controls, or another rigging configuration requires a different control.

OEM and Cross Reference Numbers

Pro Marine 8M0059686P cross-references the following Mercury remote-control numbers for the compatible 14-pin / Gen 2 control application.

What This Control is Used For

The binnacle control provides the operator interface for throttle and shift operation on compatible Mercury mechanical-control installations.

This style of control mounts at the helm or console and connects to the engine rigging system using the required Mercury electrical connection and mechanical control cables.

It is commonly used when replacing a worn or damaged remote control, restoring an existing Mercury rigging system, or re-rigging a boat that is already configured for the corresponding Mercury 14-pin and Gen 2 cable system.

Compatible Applications

Fitment for this control is determined primarily by the rigging configuration, not a simple horsepower or model-year range.

Verify Before Replacing Another Mercury Control

Mercury control boxes can look similar while using different rigging systems. This part should not automatically be substituted for a control that uses a different connector or cable generation.

• Do not substitute for an 8-pin control without verifying the complete rigging system.
• Do not substitute for a Gen 1 cable control unless the rigging is being properly converted.
• Do not use as a replacement for a digital electronic throttle and shift control.
• Verify whether the installation requires a single- or multiple-engine control configuration.
• Compare the original Mercury control-box number whenever possible.

Common Replacement Reasons

• Existing binnacle control has excessive wear or internal damage.
• Throttle or shift lever operation has become unreliable or difficult.
• Control housing or lever has been physically damaged.
• Existing control is being replaced during a Mercury re-rig or helm restoration.
• An older matching Mercury OEM control number is being replaced.
• The boat requires a compatible 14-pin top-mount control using Gen 2 cables.

Installation Tips

• Disconnect battery power before servicing the remote-control or engine electrical system.
• Confirm the existing electrical connector is the correct Mercury 14-pin configuration.
• Verify that the installed throttle and shift cables are Mercury Gen 2-style cables.
• Compare the new control with the original unit before modifying the console or cable routing.
• Inspect control cables for stiffness, corrosion, damage, or excessive wear before reconnecting them.
• Route cables without sharp bends or binding that could interfere with throttle or shift movement.
• After installation, verify correct shift direction, neutral position, throttle travel, and control operation before operating the boat.

Remote-control installation affects throttle and shift operation. Installation and adjustment should be performed by a qualified marine technician if you are not familiar with Mercury mechanical rigging systems.

Key Features and Benefits

• Pro Marine Brand: Aftermarket alternative to the corresponding Mercury OEM control.
• Top Mount Design: Designed for binnacle / console-mounted helm installations.
• Mercury 14-Pin: For compatible Mercury 14-pin electrical rigging systems.
• Gen 2 Cable Compatible: Designed for Mercury Gen 2-style mechanical control cables.
• Multiple OEM Cross References: Cross-references 8M0041431, 8M0059686, 8M4507538, and 883711A12.
• OEM Version Available: Genuine Mercury 8M4507538 is also stocked by Pro Marine USA.

Frequently Asked Questions

What is Pro Marine 8M0059686P?

8M0059686P is a Pro Marine aftermarket binnacle / top-mount remote control for compatible Mercury 14-pin rigging systems using Gen 2-style mechanical control cables.

What type of control cables does 8M0059686P use?

It is designed for Mercury Gen 2-style control cables.

What electrical connection does this control use?

This control is listed for a Mercury 14-pin electrical connection.

Is this a side-mount control?

No. This is a binnacle / top-mount console control.

Does 8M0059686P replace Mercury 8M0059686?

Yes. Mercury 8M0059686 is one of the OEM cross-reference numbers listed for Pro Marine 8M0059686P.

Does it replace Mercury 883711A12?

883711A12 is also listed as a cross reference for this compatible control application.

Is Mercury 8M4507538 the OEM version?

Yes. Pro Marine USA stocks Mercury 8M4507538 as the genuine Mercury OEM console / top-mount control option.

Will this fit every Mercury outboard?

No. Compatibility depends on the boat's Mercury rigging system. The application must use the compatible 14-pin connection and Gen 2-style mechanical control cables.

Will this replace an 8-pin Mercury control?

Not as a direct replacement based only on appearance. This control is for the compatible 14-pin system. Verify the complete rigging configuration before changing control types.

Will it work with Mercury Gen 1 control cables?

This listing is specifically for a Gen 2-style control cable application. A Gen 1 cable system should not be assumed compatible.

Is this for digital throttle and shift?

No. This listing is for a control using mechanical Gen 2-style throttle and shift control cables.
