Yamaha Suzuki Mercury 115-300HP 122°F Thermostat F12411-1
Yamaha 3.1L HPDI 200-300hp
Merc/Yam 4 Strk 115hp 01 & Up
| Quantity | Price |
| 1 | 51.41 |
Yamaha OEM 122°F / 50°C Thermostat
Yamaha, Suzuki & Mercury 122°F / 50°C Thermostat - F12411-1
The F12411-1 Thermostat is a genuine Yamaha OEM 122°F / 50°C engine thermostat used across a surprisingly broad range of Yamaha, Suzuki and Mercury outboard applications.
Yamaha applications include select F115 four-strokes plus 200-300HP HPDI families including VZ200, VZ225, VZ250, VZ300, Z250, Z300, LZ250 and LZ300. Suzuki applications include select DF100A through DF300AP four-stroke engines. Mercury applications include select 115HP EFI outboards.
This thermostat cross references Yamaha 60V-12411-00-00 and 68V-12411-00-00, Suzuki 17670-90J20 / 17670-90J21, Sierra 18-3525, and several Mercury numbers listed below.
OEM & Cross Reference Numbers
| Brand / Type | Part Number |
|---|---|
| Pro Marine Reference | F12411 |
| Yamaha OEM | 60V-12411-00-00 |
| Yamaha OEM | 68V-12411-00-00 |
| Suzuki OEM | 17670-90J20 |
| Suzuki OEM | 17670-90J21 |
| Sierra | 18-3525 |
| Mercury OEM | 8M0175320 |
| Mercury OEM | 8M6010295 |
| Mercury OEM | 8M6013864 |
| Mercury OEM | 881429 |
Yamaha Fitment
F115 / LF115 four-stroke, VZ200, VZ225, VZ250, VZ300 HPDI, Z250 / Z300 HPDI and LZ250 / LZ300 counter-rotation HPDI applications.
| Engine Family | Verified Years / Models |
|---|---|
| Yamaha F115 Four-Stroke | 2000-Present fitment represented by F115TLRY, F115TLRZ, F115TJRA/B/C/D, F115TLRA/B/C/D, F115TXRA/B/C/D and later F115JA, F115LA, F115TJR, F115TLR, F115TXR and F115XA model families. |
| Yamaha LF115 Counter-Rotation Four-Stroke | 2000-Present fitment represented by LF115TXRY, LF115TXRZ, LF115TXRA/B/C/D, LF115TXR, LF115XA and related model families. |
| Yamaha VZ200 HPDI | Select 2005-Present VZ200TLR / VZ200RTLR applications. |
| Yamaha VZ225 HPDI | Select 2003-Present VZ225TLR and VZ225HTLR applications. |
| Yamaha VZ250 HPDI | Select 2003-Present VZ250TLR and VZ250FTLR applications. |
| Yamaha VZ300 HPDI | Select 2004-Present VZ300TLR and VZ300BTLR applications. |
| Yamaha Z250 HPDI | Select 2003-Present Z250TUR and Z250TXR applications. |
| Yamaha Z300 HPDI | Select 2004-Present Z300TUR and Z300TXR applications. |
| Yamaha LZ250 / LZ300 HPDI | Select 2003-Present counter-rotation LZ250 and LZ300 TUR / TXR applications. |
Suzuki Four-Stroke Fitment
Suzuki uses this 50°C / 122°F thermostat across numerous inline-four and larger four-stroke engine families. The supplied fitment includes the following major groups:
| Suzuki Engine Family | Verified Application Coverage |
|---|---|
| DF100A | Select DF100A / DF100AT applications from 2013 and later, including 10003F and related serial families. |
| DF115A | Select DF115A, DF115AT, DF115AST, DF115AZ and related variants from 2013 and later. |
| DF140A | Select DF140A, DF140AT and DF140AZ applications from 2013 and later. |
| DF150 / DF150AP | Select DF150, DF150AP, DF150AS, DF150AST, DF150AT and DF150AZ applications including multiple 2020-2026 model / serial families. |
| DF175 / DF175AP | Select DF175, DF175AP, DF175AT and DF175AZ applications including multiple 2020-2026 model / serial families. |
| DF200A / DF200AP | Select DF200A, DF200AP, DF200AST, DF200AT and DF200AZ applications, including 2015 and later model families. |
| DF250A / DF250AP | Select DF250A, DF250AP and DF250ATSS applications including 2013, 2015 and later serial families. |
| DF300A / DF300AP | Select DF300A and DF300AP applications including 2013, 2015 and later model / serial families. |
Mercury 115HP EFI Fitment
| Engine | Serial Range |
|---|---|
| Mercury 115HP EFI | 0T178500 thru 0T800999 |
| Mercury 115HP EFI | 0T801000 thru 1B226999 |
| Mercury 115HP EFI | 1B227000 thru 1B366822 |
Thermostats can vary within the same horsepower range and engine family. Match the engine model / serial number and confirm that the original thermostat cross references one of the OEM numbers listed above.
This thermostat has an opening temperature of approximately 122°F / 50°C.
Choose Your Thermostat
Pro Marine stocks this thermostat in multiple versions, allowing you to choose between the Yamaha OEM thermostat, the Pro Marine aftermarket version or the Suzuki OEM version.
Pro Marine F12411 122°F / 50°C Thermostat
Pro Marine aftermarket version of this 122°F / 50°C thermostat. A cost-effective replacement for compatible Yamaha, Suzuki and Mercury applications using the OEM cross references listed above.

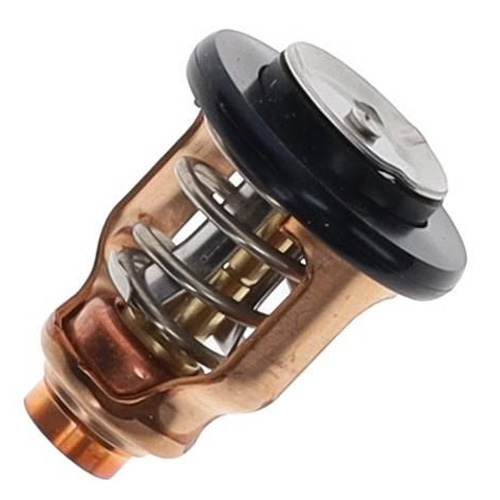

Suzuki OEM 17670-90J21 50°C / 122°F Thermostat
Genuine Suzuki OEM version for compatible DF100A through DF300-series applications that call for Suzuki thermostat 17670-90J20 or 17670-90J21.
What This Thermostat Does
The thermostat regulates coolant flow through the engine so the powerhead can reach and maintain its intended operating temperature. When the engine is cold, the thermostat restricts cooling-water flow. As temperature rises to approximately 122°F / 50°C, the thermostat begins opening to allow additional cooling water to circulate.
Correct thermostat operation is important for engine warm-up, combustion quality, fuel management and overall cooling-system performance.
Common Signs of a Thermostat Problem
- Engine running hotter than normal
- Overheat warning or alarm
- Thermostat stuck closed and restricting cooling water
- Engine running unusually cool because the thermostat is stuck open
- Excessive deposits or corrosion around the thermostat
- Damaged thermostat spring or valve
- Thermostat fails temperature / opening test
Why Replace an Outboard Thermostat?
Marine thermostats operate continuously in raw-water cooling systems and can become affected by salt, minerals, corrosion, debris and age. A thermostat that sticks closed can restrict cooling flow, while one that remains open can prevent the engine from reaching its intended operating temperature.
Thermostats should be inspected during cooling-system service and replaced when damaged, corroded, sticking or outside the manufacturer's temperature specification.
Key Features and Benefits
- Genuine Yamaha OEM thermostat
- 122°F / 50°C temperature rating
- Fits select Yamaha F115 and LF115 four-stroke outboards
- Fits select Yamaha VZ200-VZ300 HPDI engines
- Fits select Yamaha Z250 / Z300 and LZ250 / LZ300 HPDI engines
- Fits select Suzuki DF100A-DF300AP applications
- Fits select Mercury 115HP EFI serial ranges
- Cross references Yamaha 60V-12411-00-00 and 68V-12411-00-00
- Cross references Suzuki 17670-90J20 and 17670-90J21
- Cross references Sierra 18-3525
- Cross references Mercury 8M0175320, 8M6010295, 8M6013864 and 881429
- Pro Marine aftermarket and Suzuki OEM alternatives linked above
FAQ
What temperature is this thermostat?
This thermostat is rated at approximately 122°F / 50°C.
Is F12411-1 a genuine Yamaha thermostat?
Yes. This listing is for the Yamaha OEM version.
A Pro Marine aftermarket version is linked above.
Does this fit Yamaha F115?
Yes. The supplied fitment includes numerous Yamaha F115 and LF115
four-stroke models from 2000 through later applications. Verify your
complete model number before ordering.
Does this fit Yamaha HPDI engines?
Yes. Verified fitment includes select VZ200, VZ225, VZ250, VZ300,
Z250, Z300, LZ250 and LZ300 HPDI models.
Does this fit Suzuki DF100A through DF200A?
Yes. The supplied fitment includes extensive DF100A, DF115A, DF140A,
DF150, DF175 and DF200A / AP applications.
Does this fit Suzuki DF250 and DF300?
Yes. Select DF250A / AP and DF300A / AP applications are included in
the fitment supplied above.
Does this fit Mercury 115 EFI?
Yes. Verified Mercury fitment includes 115HP EFI serial ranges
0T178500 thru 0T800999,
0T801000 thru 1B226999, and
1B227000 thru 1B366822.
What Yamaha OEM numbers does it replace?
Yamaha references include 60V-12411-00-00 and
68V-12411-00-00.
What Suzuki thermostat does this cross reference?
It cross references Suzuki 17670-90J20 and
17670-90J21.
Do you stock an aftermarket version?
Yes. The Pro Marine F12411 122°F / 50°C thermostat is
linked above.
Do you stock the genuine Suzuki version?
Yes. The genuine Suzuki 17670-90J21 thermostat is also
linked above.
