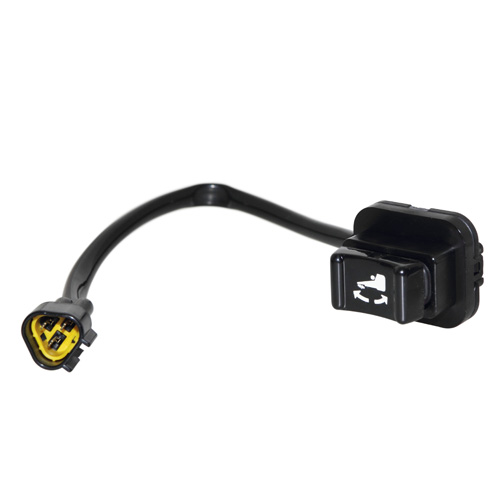

69J82563P Yamaha 25-300 HP Trim and Tilt Switch
The Pro Marine 69J82563P Trim and Tilt Switch is an aftermarket replacement for select Yamaha outboards using the 69J and related 704-series trim switch assemblies.
This switch is used across select Yamaha 25-300 HP 2-stroke and 4-stroke applications, including F, LF, T, VF, VZ, Z, and LZ engine families. Exact model and year verification is still required before ordering.
Product Information
- Pro Marine Part Number: 69J82563P
- Brand: Pro Marine
- Part Type: Power Trim and Tilt Switch
- General Fitment: Select Yamaha 25-300 HP
- Engine Types: Select 2-Stroke and 4-Stroke Applications
- Primary OEM Reference: 69J-82563-00-00
- Superseding Yamaha Reference: 69J-82563-01-00
- OEM Version Available: Yamaha 69J-82563-00-00
Important Fitment Note
This switch does not fit every Yamaha outboard from 25-300 HP. The horsepower range is a summary of the supplied Yamaha application data.
Yamaha used different trim and tilt switches depending on model year, engine family, control arrangement, and rigging configuration.
Always verify your complete Yamaha engine model or original trim-switch part number before ordering.
OEM and Cross Reference Numbers
| Part Number | Relationship |
|---|---|
| 69J82563P | Pro Marine Aftermarket |
| 69J-82563-00-00 | Yamaha OEM Reference |
| 69J-82563-01-00 | Yamaha OEM - Supersedes 69J-82563-00-00 |
| 704-82563-40-00 | Earlier Yamaha Reference |
| 704-82563-41-00 | Earlier Yamaha Reference |
| 704-82563-42-00 | Later Yamaha 704-Series Reference |
Yamaha OEM 69J-82563-00-00 Trim and Tilt Switch
Prefer genuine Yamaha OEM? Pro Marine USA also carries the Yamaha version of this trim and tilt switch. Yamaha 69J-82563-00-00 has been superseded by 69J-82563-01-00.
What This Part is Used For
The trim and tilt switch provides the operator input used to raise or lower the outboard through the compatible Yamaha power trim and tilt system.
It is commonly replaced when the original switch becomes damaged, intermittent, corroded, or no longer reliably commands one or both trim directions.
Compatible Yamaha Applications
The supplied Yamaha application data has been grouped below into customer-readable engine families and year ranges.
| Engine Family | Years | Engine Type |
|---|---|---|
| F25 / T25 | 2006-Present | 4-Stroke |
| F40 | 2006-Present | 4-Stroke |
| F50 / T50 | 2006-Present | 4-Stroke |
| F60 / T60 | 2006-Present | 4-Stroke |
| F70 | 2006-Present | 4-Stroke |
| F115 / LF115 / VF115 | 2006-Present | 4-Stroke |
| F130 / LF130 | 2006-Present | 4-Stroke |
| F150 / LF150 / FL150 | 2004-Present | 4-Stroke |
| VF150 | 2006-Present | 4-Stroke |
| F175 / VF175 | 2006-Present | 4-Stroke |
| F200 / LF200 | 2002-Present | 4-Stroke |
| VF200 | 2006-Present | 4-Stroke |
| VZ200 | 2005-Present | 2-Stroke HPDI |
| F225 / LF225 | 2002-Present | 4-Stroke |
| VF225 | 2006-Present | 4-Stroke |
| VZ225 | 2003-Present | 2-Stroke HPDI |
| F250 / LF250 | 2005-Present | 4-Stroke |
| VF250 | 2006-Present | 4-Stroke |
| VZ250 | 2003-Present | 2-Stroke HPDI |
| Z250 / LZ250 | 2003-Present | 2-Stroke HPDI |
| F300 / LF300 | 2006-Present | 4-Stroke |
| VZ300 | 2004-Present | 2-Stroke HPDI |
| Z300 / LZ300 | 2004-Present | 2-Stroke HPDI |
Common Symptoms and Replacement Reasons
- Trim or tilt does not respond when the switch is pressed.
- UP or DOWN function operates intermittently.
- One direction works while the other does not.
- Switch housing or button is damaged.
- Wiring or connector at the original switch is damaged or corroded.
- Water intrusion has caused unreliable switch operation.
A non-operating trim system is not always caused by the switch. Wiring, connectors, relays, fuses, battery voltage, and the trim motor should also be checked during diagnosis.
Installation Tips
- Disconnect battery power before servicing the trim and tilt electrical system.
- Compare the replacement switch and connector with the original part before installation.
- Inspect nearby wiring and terminals for corrosion or damage.
- Route wiring so it cannot be pinched, stretched, or chafed.
- After installation, verify both UP and DOWN trim functions.
Key Features and Benefits
- Pro Marine Brand: Aftermarket replacement for listed Yamaha applications.
- Broad Application Coverage: Select Yamaha 25-300 HP 2-stroke and 4-stroke outboards.
- OEM Cross References: Replaces multiple Yamaha 69J and 704-series trim-switch numbers.
- UP and DOWN Control: Provides trim and tilt switch input on compatible systems.
- OEM Version Available: Genuine Yamaha alternative is also available from Pro Marine USA.
Frequently Asked Questions
What does Pro Marine 69J82563P fit?
It fits select Yamaha 25-300 HP 2-stroke and 4-stroke outboards, including specific F, LF, T, VF, VZ, Z, and LZ model families.
Does it fit every Yamaha 25-300 HP outboard?
No. The horsepower range is only a general fitment summary. Exact engine model and original trim-switch configuration must be verified.
Does 69J82563P replace Yamaha 69J-82563-00-00?
Yes. 69J-82563-00-00 is one of the primary Yamaha OEM references for this part.
What supersedes Yamaha 69J-82563-00-00?
Yamaha 69J-82563-01-00 supersedes the earlier 69J-82563-00-00 number.
Is a genuine Yamaha version available?
Yes. Pro Marine USA also carries the Yamaha OEM trim and tilt switch .
If my engine will not trim, is the switch definitely bad?
No. Trim problems can also be caused by relays, wiring, connectors, fuses, battery voltage, or the trim motor. The circuit should be tested before replacing parts.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Part Numbers
69J82563P, 69J-82563-00-00, 69J-82563-01-00, 704-82563-40-00, 704-82563-41-00, 704-82563-42-00, 69J825630000, 69J825630100, 704825634000, 704825634100, 704825634200
Searchable Terms
Yamaha 25-300 HP trim switch, Yamaha trim and tilt switch, Yamaha power trim switch, Yamaha 2-stroke trim switch, Yamaha 4-stroke trim switch, Yamaha HPDI trim switch, Yamaha F150 trim switch, Yamaha F200 trim switch, Yamaha F225 trim switch, Yamaha F250 trim switch, Yamaha F300 trim switch, Yamaha VZ250 trim switch, 69J-82563-00-00 replacement, 69J-82563-01-00 replacement, Pro Marine 69J82563P
69J-82563-01-00
704-82563-40-00
704-82563-41-00
704-82563-42-00
6X5-82563-01-00
6X5-82563-02-00
6BR-82563-01-00
6R3-82563-01-00
63D-82563-10-00
63D-82563-11-00
82563P Yamaha 703 Trim and Tilt Switch
The Pro Marine 82563P Trim and Tilt Switch is an aftermarket replacement for select Yamaha 703-series side-mount remote controls.
This handle-mounted UP / DOWN trim switch is used on select Yamaha 8-300 HP 2-stroke and 4-stroke applications from 1984-Present where the corresponding 703-series control and switch configuration is installed.
Product Information
- Pro Marine Part Number: 82563P
- Brand: Pro Marine
- Part Type: Power Trim and Tilt Switch
- Control Type: Select Yamaha 703-Series Side-Mount Remote Controls
- General Horsepower Range: Select 8-300 HP Applications
- General Year Range: 1984-Present
- Engine Types: Select Yamaha 2-Stroke and 4-Stroke Outboards
- Current Yamaha Reference: 703-82563-02-00
Important Fitment Note
This switch does not fit every Yamaha outboard from 8-300 HP. The horsepower and year range summarize a broad group of specifically listed applications.
Fitment is strongly dependent on the Yamaha 703-series side-mount remote control and the trim-switch configuration installed in the control handle.
Before ordering, compare your original switch part number, switch shape, wiring lead, connector, and control-box configuration. Do not order this electrical control part by horsepower or year alone.
OEM and Cross Reference Numbers
Pro Marine 82563P replaces the following Yamaha 703-series trim and tilt switch numbers.
| Part Number | Relationship |
|---|---|
| 82563P | Pro Marine Aftermarket |
| 703-82536-00-00 | Earlier Yamaha OEM Number |
| 703-82563-00-00 | Earlier Yamaha OEM Number |
| 703-82563-01-00 | Earlier Yamaha OEM Number |
| 703-82563-02-00 | Current Yamaha OEM Reference |
What This Part is Used For
This switch is installed in compatible Yamaha 703-series remote-control handles and provides the operator with convenient UP and DOWN power trim and tilt control from the helm.
When the switch is pressed, it sends the electrical command used by the compatible Yamaha power trim and tilt system to raise or lower the engine.
This allows the operator to adjust engine trim while underway and control engine tilt when appropriate for shallow-water operation, servicing, launching, retrieval, or trailering.
Compatible Yamaha Applications
This switch has broad application across select Yamaha outboards, but the common fitment point is the compatible 703-series side-mount remote-control assembly.
| Application | Fitment |
|---|---|
| Brand | Yamaha Outboard |
| Horsepower | Select 8-300 HP Applications |
| Years | 1984-Present depending on model and control configuration |
| Engine Types | Select 2-Stroke and 4-Stroke Yamaha Outboards |
| Remote Control | Compatible Yamaha 703-Series Side-Mount Control |
| Switch Location | Remote-Control Handle / Thumb Trim Switch |
Common Symptoms and Replacement Reasons
- Trim or tilt does not respond from the remote-control handle.
- UP or DOWN function works intermittently.
- Only one trim direction operates from the control handle.
- Thumb switch is cracked, broken, loose, or physically damaged.
- Switch wiring or connector is damaged or corroded.
- Water intrusion has caused unreliable switch operation.
- Original Yamaha 703-series switch is being replaced during control-box service.
If another trim switch on the engine works but the helm-mounted switch does not, the control-handle switch or its wiring may be part of the problem. Proper electrical testing should still be performed before replacing parts.
Installation Tips
- Disconnect battery power before servicing the remote-control electrical system.
- Confirm the original control is the compatible Yamaha 703-series configuration.
- Compare the replacement switch shape, wiring lead, connector, and mounting arrangement with the original.
- Photograph the original switch and wiring before disassembly.
- Inspect the control-box wiring and connectors for corrosion or damaged insulation.
- Route the replacement wiring so it cannot be pinched by the control handle or housing.
- After installation, verify both UP and DOWN trim functions before operating the boat.
Key Features and Benefits
- Pro Marine Brand: Aftermarket replacement for compatible Yamaha 703-series controls.
- Handle-Mounted Control: Restores convenient UP / DOWN trim operation from the remote-control handle.
- Broad Yamaha Coverage: Used across select 8-300 HP 2-stroke and 4-stroke applications.
- Long Application Range: Covers select applications from 1984-Present.
- Multiple OEM References: Replaces four Yamaha 703-series switch numbers.
- Current OEM Cross Reference: Yamaha 703-82563-02-00.
Frequently Asked Questions
What is Pro Marine 82563P?
82563P is a Pro Marine aftermarket UP / DOWN trim and tilt switch for compatible Yamaha 703-series side-mount remote controls.
What Yamaha engines does 82563P fit?
Application data covers select Yamaha 8-300 HP 2-stroke and 4-stroke outboards from 1984-Present. Exact fitment depends on the remote-control and switch configuration.
Does it fit every Yamaha 8-300 HP engine?
No. The horsepower range is only a general application summary. The engine must use the compatible Yamaha 703-series control and switch arrangement.
Where is this switch located?
On compatible installations, the switch mounts in the handle of the Yamaha 703-series side-mount remote control so the operator can control trim and tilt with their thumb.
Does 82563P replace Yamaha 703-82563-02-00?
Yes. Yamaha 703-82563-02-00 is the current OEM reference for this switch family.
Does 703-82563-02-00 replace 703-82563-01-00?
Yes. Yamaha 703-82563-02-00 supersedes the earlier 703-82563-01-00 number.
What about Yamaha 703-82563-00-00 and 703-82536-00-00?
Those are earlier Yamaha numbers in the same supersession chain and are included among the cross references for Pro Marine 82563P.
Will this fix a trim system that does not work at all?
Not necessarily. A trim problem can also be caused by wiring, relays, fuses, battery voltage, connectors, the trim motor, or other electrical components. Proper diagnosis is recommended before replacing parts.
How should I confirm fitment?
Compare the OEM number from the original switch and verify that the boat uses the corresponding Yamaha 703-series side-mount remote control. Switch shape, wiring, and connector configuration should also match.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Part Numbers
82563P, 703-82536-00-00, 703-82563-00-00, 703-82563-01-00, 703-82563-02-00, 703825360000, 703825630000, 703825630100, 703825630200
Searchable Terms
Yamaha 703 trim switch, Yamaha 703 tilt switch, Yamaha remote control trim switch, Yamaha side mount trim switch, Yamaha thumb trim switch, Yamaha control handle trim switch, Yamaha 8-300 HP trim switch, Yamaha 2-stroke trim switch, Yamaha 4-stroke trim switch, 703-82563-02-00 replacement, 703-82563-01-00 replacement, 703-82563-00-00 replacement, 703-82536-00-00 replacement, Pro Marine 82563P
703-82563-00-00
703-82563-01-00
703-82563-02-00
Yamaha OEM 69J-82563-00-00 Trim and Tilt Switch
The Yamaha 69J-82563-00-00 Trim and Tilt Switch is a genuine Yamaha OEM power trim and tilt switch used on select Yamaha outboards across multiple engine families.
Supplied Yamaha application data shows this switch on select 25-300 HP 2-stroke and 4-stroke outboards, including F, LF, T, VF, VZ, Z, and LZ-series engines. Yamaha 69J-82563-01-00 supersedes the original 69J-82563-00-00 part number.
Product Information
- Part Number: 69J-82563-00-00
- Brand: Genuine Yamaha OEM
- Part Type: Power Trim and Tilt Switch
- General Fitment: Select Yamaha 25-300 HP
- Engine Types: Select 2-Stroke and 4-Stroke Applications
- Superseded To: 69J-82563-01-00
- Aftermarket Alternative: Pro Marine 69J82563P
Important Fitment Note
This switch does not fit every Yamaha outboard from 25-300 HP. The horsepower range is a convenient summary of the supplied Yamaha application data.
Yamaha used different trim and tilt switches depending on engine family, model year, control configuration, and rigging system.
Verify the complete Yamaha engine model and, whenever possible, the original trim-switch part number before ordering.
OEM and Cross Reference Numbers
| Part Number | Relationship |
|---|---|
| 69J-82563-00-00 | Yamaha OEM Original Number |
| 69J-82563-01-00 | Yamaha OEM - Supersedes 69J-82563-00-00 |
| 704-82563-40-00 | Earlier Yamaha Cross Reference |
| 704-82563-41-00 | Earlier Yamaha Cross Reference |
| 704-82563-42-00 | Later Yamaha 704-Series Reference |
| 69J82563P | Pro Marine Aftermarket Alternative |
What This Part is Used For
The trim and tilt switch provides operator input to the power trim and tilt system on compatible Yamaha outboards.
Pressing the switch commands the system to raise or lower the engine. This allows the operator to adjust engine angle during operation and to raise the outboard farther when appropriate for trailering, servicing, or shallow-water situations.
Compatible Yamaha Applications
The supplied Yamaha catalog application data has been interpreted below into engine families and useful year ranges. These ranges represent the listed applications for this switch and should not be interpreted as universal fitment for every engine of the same horsepower.
| Yamaha Engine Family | Years | Engine Type |
|---|---|---|
| F25 / T25 | 2006-Present | 4-Stroke |
| F40 | 2006-Present | 4-Stroke |
| F50 / T50 | 2006-Present | 4-Stroke |
| F60 / T60 | 2006-Present | 4-Stroke |
| F70 | 2006-Present | 4-Stroke |
| F115 / LF115 | 2006-Present | 4-Stroke |
| VF115 SHO | 2006-Present | 4-Stroke |
| F130 / LF130 | 2006-Present | 4-Stroke |
| F150 / LF150 / FL150 | 2004-Present | 4-Stroke |
| VF150 SHO | 2006-Present | 4-Stroke |
| F175 | 2006-Present | 4-Stroke |
| VF175 SHO | 2006-Present | 4-Stroke |
| F200 / LF200 | 2002-Present | 4-Stroke |
| VF200 SHO | 2006-Present | 4-Stroke |
| VZ200 HPDI | 2005-Present | 2-Stroke HPDI |
| F225 / LF225 | 2002-Present | 4-Stroke |
| VF225 SHO | 2006-Present | 4-Stroke |
| VZ225 HPDI | 2003-Present | 2-Stroke HPDI |
| F250 / LF250 | 2005-Present | 4-Stroke |
| VF250 SHO | 2006-Present | 4-Stroke |
| VZ250 HPDI | 2003-Present | 2-Stroke HPDI |
| Z250 / LZ250 HPDI | 2003-Present | 2-Stroke HPDI |
| F300 / LF300 | 2006-Present | 4-Stroke |
| VZ300 HPDI | 2004-Present | 2-Stroke HPDI |
| Z300 / LZ300 HPDI | 2004-Present | 2-Stroke HPDI |
Pro Marine 69J82563P Trim and Tilt Switch
Looking for an aftermarket alternative? Pro Marine USA also offers 69J82563P for compatible applications covered by this Yamaha trim-switch family.
Common Symptoms and Replacement Reasons
- Trim or tilt does not respond when the switch is pressed.
- UP or DOWN function works intermittently.
- One direction works while the other does not.
- Switch button or housing is physically damaged.
- Wiring or connector at the switch is damaged or corroded.
- Water intrusion has caused unreliable switch operation.
- Original switch is being replaced during Yamaha engine service or restoration.
A failed trim function does not automatically mean the trim switch is defective. Wiring, connectors, relays, fuses, battery voltage, and the trim motor should also be inspected during diagnosis.
Installation Tips
- Disconnect battery power before servicing the trim and tilt electrical system.
- Compare the replacement switch, connector, and wiring with the original part before installation.
- Inspect mating terminals and nearby wiring for corrosion or damage.
- Route and secure wiring so it cannot be pinched, pulled, or chafed.
- After installation, test both the UP and DOWN functions.
Key Features and Benefits
- Genuine Yamaha OEM: Factory Yamaha replacement component.
- Original Equipment Fit: Designed for the specifically listed Yamaha applications.
- Wide Catalog Coverage: Found across select Yamaha 25-300 HP engine families.
- 2-Stroke and 4-Stroke Applications: Includes specific four-stroke, SHO, and HPDI families.
- Superseded OEM Number: 69J-82563-01-00 replaces 69J-82563-00-00.
- Aftermarket Option Available: Pro Marine 69J82563P is available as an alternative.
Frequently Asked Questions
What does Yamaha 69J-82563-00-00 fit?
The supplied Yamaha application data lists this trim and tilt switch on select Yamaha 25-300 HP outboards, including specific F, LF, T, VF, VZ, Z, and LZ engine families.
Does it fit every Yamaha 25-300 HP outboard?
No. The horsepower range summarizes the listed applications. Fitment depends on the exact Yamaha model, year, and trim-switch configuration.
What supersedes Yamaha 69J-82563-00-00?
Yamaha 69J-82563-01-00 supersedes 69J-82563-00-00.
Is this a genuine Yamaha part?
Yes. This listing is for the genuine Yamaha OEM trim and tilt switch.
Does this fit Yamaha SHO outboards?
The supplied catalog data includes specific VF115, VF150, VF175, VF200, VF225, and VF250 SHO applications. Verify the complete engine model before ordering.
Does this fit Yamaha HPDI engines?
The supplied catalog data includes specific VZ, Z, and LZ-series HPDI applications from 200 through 300 HP. Exact model verification is required.
If my trim does not work, is the switch definitely bad?
No. A power trim problem can also be caused by wiring, connectors, relays, fuses, battery voltage, or the trim motor. Diagnose the system before replacing components.
Is a less expensive aftermarket version available?
Yes. Pro Marine USA also offers the Pro Marine 69J82563P trim and tilt switch for compatible applications.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Part Numbers
69J-82563-00-00, 69J-82563-01-00, 704-82563-40-00, 704-82563-41-00, 704-82563-42-00, 69J82563P, 69J825630000, 69J825630100, 704825634000, 704825634100, 704825634200
Searchable Terms
Yamaha OEM trim switch, Yamaha trim and tilt switch, Yamaha power trim switch, Yamaha 25-300 HP trim switch, Yamaha 2-stroke trim switch, Yamaha 4-stroke trim switch, Yamaha SHO trim switch, Yamaha HPDI trim switch, Yamaha F150 trim switch, Yamaha F200 trim switch, Yamaha F225 trim switch, Yamaha F250 trim switch, Yamaha F300 trim switch, Yamaha VF250 trim switch, Yamaha VZ250 trim switch, 69J-82563-00-00, 69J-82563-01-00
69J-82563-01-00
704-82563-40-00
704-82563-41-00
704-82563-42-00
68F-8259F-01-00
60V-8259F-01-00
6E9825P Stop Switch with Lanyard
The Pro Marine 6E9825P Stop Switch with Lanyard is a replacement engine stop / emergency kill switch assembly used on select Yamaha, Mercury, and Mariner outboard applications.
The switch provides an important operator-safety function by shutting down the engine when the safety lanyard is pulled from the stop switch. It is a replacement for Yamaha 6E9-82575-02-00 and multiple earlier Yamaha, Mercury/Mariner, and aftermarket part numbers.
Product Information
- Pro Marine Part Number: 6E9825P
- Brand: Pro Marine
- Part Type: Engine Stop / Kill Switch Assembly
- Includes: Stop switch and safety lanyard
- Primary Yamaha Replacement: 6E9-82575-02-00
- Sierra Cross Reference: 18-65450
- Application: Select Yamaha, Mercury, and Mariner outboards
OEM and Cross Reference Numbers
Pro Marine 6E9825P replaces or cross-references the following engine stop switch numbers. Always verify the engine model and application before ordering.
| Part Number | Reference |
|---|---|
| 6E9825P | Pro Marine |
| 6E9-82575-00-00 | Yamaha |
| 6E9-82575-01-00 | Yamaha - Earlier Number |
| 6E9-82575-02-00 | Yamaha Engine Stop Switch Assembly |
| 6H4-82575-00-00 | Yamaha |
| 63V-82575-00-00 | Yamaha |
| 688-82575-00-00 | Cross Reference |
| 688-82575-01-00 | Cross Reference |
| 689-82575-02-00 | Yamaha |
| 689-82575-03-00 | Yamaha |
| 689-82575-04-00 | Yamaha |
| 703-82575-00-00 | Cross Reference |
| 18-65450 | Sierra |
| 94537M | Mercury / Mariner Reference |
| 97757M | Mercury / Mariner Reference |
| 99050M | Mercury / Mariner Reference |
What This Part is Used For
The engine stop switch is part of the outboard's emergency engine-shutdown system. The safety lanyard attaches to the operator and engages the stop switch during normal operation.
If the operator moves far enough away from the controls to pull the lanyard from the switch, the switch activates the engine's stop circuit and shuts down the engine.
Because this is a safety-related component, a damaged switch, broken lanyard, loose clip, corroded connection, or unreliable stop circuit should be corrected before operating the boat.
Important Fitment Note
Do not order this switch based only on engine horsepower. Yamaha used different stop-switch arrangements across model years, control configurations, and engine families.
Match your exact engine model and/or original stop-switch part number to the applications and cross-reference numbers below. If you are unsure, contact Pro Marine USA with the complete engine model and serial number before ordering.
Compatible Applications
The following applications are based on the supplied Yamaha and Mercury/Mariner catalog fitment information. Exact model identification is more reliable than horsepower alone.
Mercury and Mariner Outboard Applications
| Model | Serial Range | Application |
|---|---|---|
| 15K HP | 65G-200197 through 00301769 | Steering Handle |
| 15K HP | 65G-602581 through 00301769 | Steering Handle |
| 25K | 62CK-200454 through 00313272 | Cowling |
| 40C Twin Carb | 6E9-000106 through 6E9-007665 | Belgium |
| 40C Twin Carb | 6E9-100101 through 6E9-105013 | Canada |
| 40C Twin Carb | 6E9-300126 through 6E9-309343 | USA |
| 40C Twin Carb | 6E9-400231 through 6E9-423162 | USA |
| W40 (W/Marathon) | 6F6-005206 through 00365385 | Belgium |
| W40 (W/Marathon) | 6F6-308308 through 00365385 | Belgium |
| K 40 HP | 6F5-000711 through 6F5325148 | Belgium |
| K 40 HP | 6F5-301827 through 6F5325148 | Belgium |
| K 40 HP | 6F5K-302372 through 6F5325148 | Belgium |
Yamaha 6, 8, 9.9 and 15 HP Applications
| HP / Family | Models | Years Shown in Application Data |
|---|---|---|
| 6 HP | 6LF, 6LG, 6LH, 6LJ, 6MLHP, 6MLHQ, 6MLHR, 6MLHS, 6MLHT, 6MLHU, 6MLHV, 6MLHW, 6MLHX, 6MLHY, 6MSHP, 6MSHQ, 6MSHR, 6MSHS, 6MSHT, 6MSHU, 6MSHV, 6MSHW, 6MSHX, 6MSHY, 6SF, 6SG, 6SH, 6SJ | 1986-2000 depending on model |
| 8 HP | 8LF, 8LG, 8LH, 8LJ, 8LK, 8LN, 8MLHP, 8MLHQ, 8MLHR, 8MLHS, 8MLHT, 8MLHU, 8MLHV, 8MLHW, 8MLHX, 8MLHY, 8MSH, 8MSHA, 8MSHB, 8MSHC, 8MSHD, 8MSHP, 8MSHQ, 8MSHR, 8MSHS, 8MSHT, 8MSHU, 8MSHV, 8MSHW, 8MSHX, 8MSHY, 8MSHZ, 8SF, 8SG, 8SH, 8SJ, 8SK, 8SN | 1984-2006 and later depending on model |
| 9.9 HP | 9.9ELD, 9.9ELF, 9.9ELG, 9.9ELH, 9.9ELHP, 9.9ELHQ, 9.9ELHR, 9.9ELJ, 9.9ELK, 9.9ELN, 9.9ELHS, 9.9ELHT, 9.9ESD, 9.9ESF, 9.9ESG, 9.9ESH, 9.9ESHP, 9.9ESHQ, 9.9ESHR, 9.9ESJ, 9.9ESK, 9.9ESN, 9.9ESHS, 9.9ESHT, 9.9LD, 9.9LF, 9.9LG, 9.9LH, 9.9LJ, 9.9LK, 9.9LN, 9.9MLHP, 9.9MLHQ, 9.9MLHR, 9.9MLHS, 9.9MLHT, 9.9MLHW, 9.9MLHX, 9.9MSHP, 9.9MSHQ, 9.9MSHR, 9.9MSHS, 9.9MSHT, 9.9MSHW, 9.9MSHX, 9.9SD, 9.9SF, 9.9SG, 9.9SH, 9.9SJ, 9.9SK, 9.9SN | 1984-1999 depending on model |
| T9.9 / FT9.9 | FT9.9ELH, FT9.9ELJ, FT9.9EXH, FT9.9EXJ, FT9.9XJ, T9.9ELH, T9.9ELHX, T9.9ELHY, T9.9ELR, T9.9ELRX, T9.9ELRY, T9.9EXH, T9.9EXHX, T9.9EXHY, T9.9EXRX, T9.9EXRY | 1986-2006 and later depending on model |
| 15 HP | 15ELD, 15ELF, 15ELG, 15ELH, 15ELHP, 15ELHQ, 15ELHR, 15ELJ, 15ELN, 15ELHS, 15ELHT, 15ESD, 15ESF, 15ESG, 15ESH, 15ESHP, 15ESHQ, 15ESHR, 15ESJ, 15ESK, 15ESN, 15ESHS, 15ESHT, 15LD, 15LF, 15LG, 15LH, 15LJ, 15LK, 15LN, 15MLHP, 15MLHQ, 15MLHR, 15MLHS, 15MLHT, 15MLHW, 15MLHX, 15MSHP, 15MSHQ, 15MSHR, 15MSHS, 15MSHT, 15MSHW, 15MSHX, 15SD, 15SF, 15SG, 15SH, 15SJ, 15SK, 15SN | 1984-1999 depending on model |
Yamaha 20, 25 and 30 HP Applications
| HP / Family | Models | Years Shown |
|---|---|---|
| 20 HP | 20MLHU, 20MLHV, 20MSHU, 20MSHV | 1996-1997 |
| 25 HP | 25ELD, 25ELF, 25ELG, 25ELH, 25ELHP, 25ELHQ, 25ELHR, 25ELJ, 25ELK, 25ELN, 25ELHS, 25ELHT, 25ELHU, 25ELHV, 25ELHW, 25ELHX, 25ELRP, 25ELRQ, 25ELRR, 25ELRS, 25ELRT, 25ELRU, 25ELRV, 25ELRW, 25ELRX, 25ESD, 25ESF, 25ESG, 25ESH, 25ESHP, 25ESHQ, 25ESHR, 25ESJ, 25ESK, 25ESN, 25ESHS, 25ESHT, 25ESHU, 25ESHV, 25ESHW, 25ESHX, 25LD, 25LF, 25LG, 25LH, 25LJ, 25LK, 25LN, 25MLHP, 25MLHQ, 25MLHR, 25MLHS, 25MLHT, 25MLHU, 25MLHU2, 25MLHV2, 25MLHV3, 25MLHW, 25MLHW3, 25MLHX, 25MLHX3, 25MLHY, 25MLHZ, 25MLHKZ, 25MSH3A, 25MSHA3, 25MSHKZ, 25MSHP, 25MSHQ, 25MSHR, 25MSHS, 25MSHT, 25MSHU, 25MSHU2, 25MSHV2, 25MSHV3, 25MSHW, 25MSHW3, 25MSHX, 25MSHX3, 25MSHY, 25MSHY3, 25MSHZ, 25MSHZ3, 25SD, 25SF, 25SG, 25SH, 25SJ, 25SK, 25SN | 1984-2002 depending on model |
| C25 / CV25 | C25ELHP, C25ELHR, C25ELHS, C25ELHT, C25ELHU, C25ELRP, C25ELRQ, C25ELRR, C25ELRS, C25ELRT, C25ELRU, C25MLHR, C25MLHS, C25MLHT, C25MLHU, C25MSHQ, C25MSHR, C25MSHS, C25MSHT, C25MSHU, CV25ELD, CV25EMLD | 1990-1996 depending on model |
| 30 HP | 30ELD, 30ELF, 30ELG, 30ELH, 30ELHS, 30ELHT, 30ELHU, 30ELHV, 30ELHW, 30ELHX, 30ELHY, 30ELHZ, 30ELJ, 30ELK, 30ELN, 30ELRP, 30ELRQ, 30ELRR, 30ELRS, 30ELRT, 30ELRU, 30ELRV, 30ELRW, 30ELRX, 30ELRY, 30ELRZ, 30ESD, 30ESF, 30ESG, 30ESH, 30ESJ, 30ESK, 30ESN, 30ESRP, 30ESRQ, 30ESRR, 30ESRS, 30ESRT, 30ESRU, 30ESRV, 30ESRW, 30LD, 30LF, 30LG, 30LH, 30MLHP, 30MLHQ, 30MLHR, 30MLHS, 30MLHT, 30MLHU, 30MLHV, 30MLHW, 30MLHX, 30MLHY, 30MLHZ, 30MSHA, 30MSHP, 30MSHQ, 30MSHR, 30MSHS, 30MSHT, 30MSHU, 30MSHV, 30MSHW, 30MSHX, 30MSHY, 30MSHZ, 30SD, 30SF, 30SG, 30SH | 1984-2002 depending on model |
| C30 | C30ELRS, C30ELRT, C30ELRU, C30MLHS | 1994-1996 |
Yamaha 40, 50 and 60 HP Applications
| Family | Models | Years Shown |
|---|---|---|
| 40 HP | 40EJRP, 40EJRQ, 40EJRR, 40ELD, 40ELF, 40ELG, 40ELH, 40ELJ, 40ELK, 40ELN, 40ELRP, 40ELRQ, 40ELRR, 40ESD, 40ESF, 40ESG, 40ESH, 40ESJ, 40ESK, 40ESN, 40ESRP, 40ESRQ, 40ESRR, 40ETLD, 40ETLF, 40ETLG, 40ETLH, 40ETLJ, 40ETLK, 40LD, 40LF, 40LG, 40LH, 40LJ, 40LK, 40LN, 40MJHP, 40MJHQ, 40MJHR, 40MLHP, 40MLHQ, 40MLHR, 40MSHP, 40MSHQ, 40MSHR, 40PLRP, 40PLRQ, 40PLRR, 40SD, 40SD-JD, 40SF, 40SF-JD, 40SG, 40SG-JD, 40SH, 40SH-JD, 40SJ, 40SJ-JD, 40SK, 40SN | 1984-1993 depending on model |
| C40 | C40ELRQ, C40ELRR, C40ELRS, C40ELRT, C40ELRU, C40ELRV, C40ERT, C40ESHV, C40MHT, C40MLHS, C40MLHT, C40MSHQ, C40MSHR, C40MSHS, C40MSHT, C40MSHU, C40MSHV, C40PLRQ, C40PLRR, C40PLRS, C40PLRT, C40PLRU, C40PLRV, C40PRT | 1992-1997 depending on model |
| 50 HP | 50ETLK, 50ETLN, 50ETMLD, 50ETSK, 50ETSN, 50TLHP, 50TLHQ, 50TLHR, 50TLHS | 1984-1994 depending on model |
| P60 | P60TLHP, P60TLHQ, P60TLHR, P60TLHS | 1991-1994 |
Additional Yamaha Outboard Applications
| Family | Models Listed in Application Data |
|---|---|
| 115 HP | 115ETLD, 115ETLD-JD, 115ETLG, 115ETLG-JD, 115ETLJ, 115ETLK, 115ETLN, 115ETXD, 115ETXG, 115ETXJ, 115ETXK, 115ETXN, 115TJRQ, 115TLRA, 115TLRB, 115TLRQ, 115TLRY, 115TRR, 115TXRA, 115TXRB, 115TXRQ, 115TXRY |
| 130 HP | 130ETLD, 130ETLG, 130ETXD, 130ETXG, 130TLRA, 130TLRB, 130TLRQ, 130TLRR, 130TLRY, 130TRR, 130TXRA, 130TXRB, 130TXRQ, 130TXRR, 130TXRY, L130TXRY |
| 150 HP | 150ETLD, 150ETLF, 150ETLG, 150ETLG-JD, 150ETLH, 150ETLJ, 150ETLK, 150ETLN, 150ETXD, 150ETXF, 150ETXG, 150ETXH, 150ETXJ, 150ETXK, 150ETXN, 150TJRY, 150TLRP, 150TLRQ, 150TLRR, 150TLRY, 150TXRA, 150TXRB, 150TXRP, 150TXRQ, 150TXRR, 150TXRY, 150TXRZ, L150ETXJ |
| 175 HP | 175ETLD, 175ETLF, 175ETLG, 175ETLH, 175ETLJ, 175ETLK, 175ETLN, 175ETXD, 175ETXF, 175ETXG, 175ETXH, 175ETXJ, 175ETXK, 175ETXN, 175TLRP, 175TLRQ, 175TLRR, 175TLRY, 175TXRP, 175TXRQ, 175TXRR, 175TXRY |
| 200 HP | 200ETLD, 200ETLD-JD, 200ETLF, 200ETLF-JD, 200ETLG, 200ETLH, 200ETLH-JD, 200ETLJ, 200ETLK, 200ETLN, 200ETXD, 200ETXF, 200ETXG, 200ETXH, 200ETXJ, 200ETXK, 200ETXN, 200TJRP, 200TJRQ, 200TJRR, 200TLRP, 200TLRQ, 200TLRR, 200TXRP, 200TXRQ, 200TXRR, L200ETXJ |
| 225 HP | 225ETLD, 225ETXD, 225TLRP, 225TLRQ, 225TLRR, 225TXRP, 225TXRQ, 225TXRR, F225TXRA, LF225TXRA, LX225TXRB, SX225TURB, SX225TXRB |
| 250 HP | 250ETXD, 250TURP, 250TURQ, 250TURR, 250TXRP, 250TXRQ, 250TXRR, L250TURR, L250TXRR, LX250TXRB, SX250TURB, SX250TXRB |
| Other Listed Yamaha Applications | VX150TLRC, 2006 OUTBO, COMMAND_LI, DEC_BINNAC, DUAL_STATI, REMOCON, REMOCON-20 and RIGGING 20 |
Common Symptoms and Replacement Reasons
- Engine stop switch is physically damaged or broken.
- Safety lanyard or retaining clip is missing or damaged.
- Engine will not reliably shut down when the lanyard is removed.
- Switch operation is intermittent.
- Electrical terminals or wiring at the original switch are damaged or corroded.
- Restoring the engine's original emergency stop-switch safety system.
Installation Tips
- Disconnect the battery or otherwise isolate engine electrical power before servicing the stop-switch circuit.
- Photograph or label the original wiring before removing the existing switch.
- Compare the replacement switch and connections with the original part before installation.
- Inspect nearby wiring and terminals for corrosion, damaged insulation, or loose connections.
- Secure the switch and wiring so they cannot interfere with steering or throttle movement.
- After installation, test normal engine operation and verify that removing the lanyard shuts the engine down correctly.
If you are not familiar with marine ignition and stop-switch circuits, installation and testing should be performed by a qualified marine technician.
Key Features and Benefits
- Pro Marine Brand: Aftermarket replacement for multiple OEM stop-switch numbers.
- Switch and Lanyard: Complete stop-switch assembly with safety lanyard.
- Emergency Shutdown: Provides the operator-activated engine cutoff function.
- Multiple Cross References: Replaces several Yamaha and Mercury/Mariner reference numbers.
- Broad Catalog Coverage: Listed for numerous Yamaha model families plus select Mercury and Mariner applications.
- Direct Replacement Application: Designed to replace the corresponding original stop-switch assembly where listed.
Frequently Asked Questions
What is Pro Marine 6E9825P?
6E9825P is a Pro Marine aftermarket engine stop switch assembly supplied with a safety lanyard for select Yamaha, Mercury, and Mariner outboard applications.
Does 6E9825P replace Yamaha 6E9-82575-02-00?
Yes. Yamaha 6E9-82575-02-00 is one of the primary OEM numbers cross-referenced to Pro Marine 6E9825P.
Does 6E9-82575-02-00 replace 6E9-82575-01-00?
Yes. Yamaha parts information identifies 6E9-82575-02-00 as the replacement for the earlier 6E9-82575-01-00 engine stop switch assembly.
Does this replace Sierra 18-65450?
Yes. Sierra 18-65450 is a cross-reference for this stop-switch application.
Is the safety lanyard included?
Yes. This Pro Marine replacement is supplied as a stop switch with lanyard.
Will this fit every Yamaha outboard in the horsepower ranges listed?
No. Fitment depends on the exact engine model, year, control arrangement, and original stop-switch configuration. Use the model listings above or match the original OEM number.
Why is the stop-switch lanyard important?
The lanyard allows the engine stop switch to shut down the engine if the operator is separated from the operating position far enough to pull the lanyard from the switch.
My engine runs normally but does not stop when the lanyard is pulled. Should I replace the switch?
A defective switch is one possible cause, but wiring, connections, and other components in the stop circuit should also be inspected. The cause should be diagnosed and corrected before operating the boat.
How can I confirm fitment if my model is not obvious?
Locate the complete model and serial information from your outboard and, if possible, the number from the original switch. Contact Pro Marine USA before ordering if you need help confirming the correct replacement.
Dealer Discounts & Store Policies
Dealer / Marine Industry Discounts
Are you a marine dealer, technician, boat builder, or industry professional? We offer dealer pricing for qualified marine businesses.
Shipping Policy
- Free shipping on orders over $100 continental U.S.
- Orders ship via UPS, USPS, and FedEx.
- Orders received before 5:30 PM EST ship the same business day.
- Typical delivery time is 1-5 business days.
30-Day Return Policy
- Returns accepted within 30 days of delivery.
- Parts must be new, unused, and in original packaging.
- Installed parts are not returnable.
- Return authorization is required before sending items back.
Need help with a return or order question?
Contact Us
Phone: 941-721-3000
Searchable Part Numbers
6E9825P, 6E9-82575-00-00, 6E9-82575-01-00, 6E9-82575-02-00, 6H4-82575-00-00, 63V-82575-00-00, 688-82575-00-00, 688-82575-01-00, 689-82575-02-00, 689-82575-03-00, 689-82575-04-00, 703-82575-00-00, 18-65450, 94537M, 97757M, 99050M
Searchable Terms
Yamaha outboard stop switch, Yamaha kill switch, Yamaha emergency stop switch, Yamaha safety lanyard switch, Yamaha engine stop switch assembly, Yamaha 6E9-82575-02-00, Yamaha 6E9-82575-01-00, Yamaha 6E9-82575-00-00, Mercury outboard stop switch, Mariner outboard stop switch, outboard kill switch with lanyard, marine engine cutoff switch, engine safety lanyard, Sierra 18-65450 replacement, Pro Marine 6E9825P
6E9-82575-00-00
6E9-82575-01-00
6E9-82575-02-00
6H4-82575-00-00
63V-82575-00-00
63V-82575-00-00
688-82575-00-00
688-82575-01-00
689-82575-02-00
689-82575-03-00
689-82575-04-00
689-82575-04-00
703-82575-00-00
94537M
97757M
99050M
